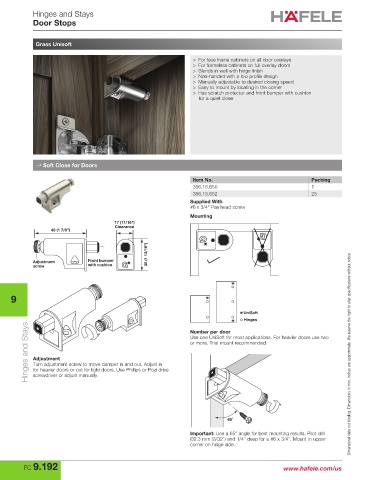

P. 1016
Hinges and Stays
Door Stops
Grass Unisoft
> For face frame cabinets on all door overlays
> For frameless cabinets on full overlay doors
> Blends in well with hinge finish
> Non-handed with a low profile design
> Manually adjustable to desired closing speed
> Easy to mount by locating in the corner
> Has scratch protector and front bumper with cushion
for a quiet close
→ Soft Close for Doors
Item No. Packing
356.15.650 1
356.15.652 25
Supplied With
#6 x 3/4" Pan head screw
Mounting
17 (11/16")
Clearance
48 (1 7/8")
30 (1 13/16")
Adjustment Front bumper
screw with cushion
9
UniSoft
Hinges
Hinges and Stays Adjustment Use one UniSoft for most applications. For heavier doors use two Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Number per door
or more. Trial mount recommended.
Turn adjustment screw to move damper in and out. Adjust in
for heavier doors or out for light doors. Use Phillips or Pozi drive
screwdriver or adjust manually.
65˚
Important: Use a 65° angle for best mounting results. Pilot drill
Ø2.3 mm (3/32") and 1/4" deep for a #6 x 3/4". Mount in upper
corner on hinge side.
FC 9.192 www.hafele.com/us
