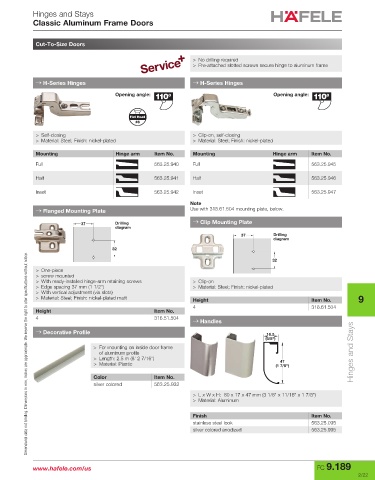

Hinges and Stays
Classic Aluminum Frame Doors

Cut-To-Size Doors

> No drilling required
> Pre-attached slotted screws secure hinge to aluminum frame

→ H-Series Hinges → H-Series Hinges

Opening angle: Opening angle:

Flat Head
#6

> Self-closing > Clip-on, self-closing
> Material: Steel; Finish: nickel-plated > Material: Steel; Finish: nickel-plated

Mounting Hinge arm Item No. Mounting Hinge arm Item No.
Full 563.25.940 Full 563.25.945

Half 563.25.941 Half 563.25.946
Inset 563.25.942 Inset 563.25.947

Note
→ Flanged Mounting Plate Use with 318.61.504 mounting plate, below.

37 Drilling → Clip Mounting Plate
diagram
37 Drilling
diagram
32
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
32
> One-piece
> screw mounted
> With ready-installed hinge-arm retaining screws > Clip-on
> Edge spacing 37 mm (1 1/2") > Material: Steel; Finish: nickel-plated
> With vertical adjustment (via slots)
> Material: Steel; Finish: nickel-plated matt Height Item No. 9
4 318.61.504
Height Item No.
4 316.51.504
→ Handles
→ Decorative Profile 16.5
(5/8")
> For mounting on inside door frame
of aluminum profile Hinges and Stays
> Length: 2.5 m (8' 2 7/16")
47
> Material: Plastic (1 7/8")
Color Item No.
silver colored 563.25.932
> L x W x H: 80 x 17 x 47 mm (3 1/8" x 11/16" x 1 7/8")
> Material: Aluminum

Finish Item No.
stainless steel look 563.25.095
silver colored anodized 563.25.995
