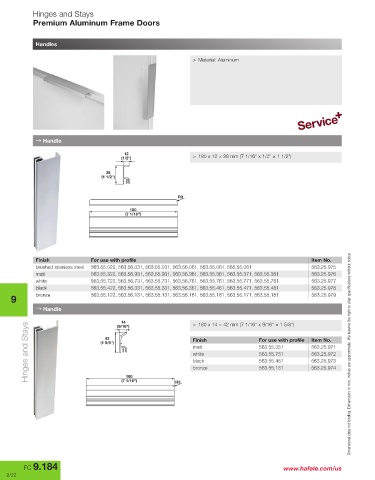

P. 1006
Hinges and Stays
Premium Aluminum Frame Doors
Handles
> Material: Aluminum
→ Handle
12
(1/2") > 180 x 12 × 38 mm (7 1/16" x 1/2" × 1 1/2")
38
(1 1/2")
R3
180
(7 1/16")
Finish For use with profile Item No.
brushed stainless steel 563.55.022, 563.56.031, 563.55.031, 563.56.061, 563.55.061, 565.55.081 563.25.975
matt 563.55.322, 563.56.931, 563.55.931, 563.56.961, 563.55.361, 563.55.371, 563.55.381 563.25.976
white 563.55.722, 563.56.731, 563.55.731, 563.56.761, 563.55.761, 563.55.771, 563.55.781 563.25.977
black 563.55.422, 563.56.331, 563.55.331, 563.56.361, 563.55.461, 563.55.471, 563.55.481 563.25.978
9 bronze 563.55.122, 563.56.131, 563.55.131, 563.56.161, 563.55.161, 563.55.171, 563.55.181 563.25.979
→ Handle
14 > 180 x 14 × 42 mm (7 1/16" x 9/16" × 1 5/8")
Hinges and Stays (1 5/8") Finish For use with profile Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(9/16")
42
matt
563.55.351
563.25.971
white
563.55.751
563.25.972
563.55.451
black
563.25.973
563.55.151
563.25.974
bronze
180
(7 1/16")
R3
FC 9.184 www.hafele.com/us
2/22
