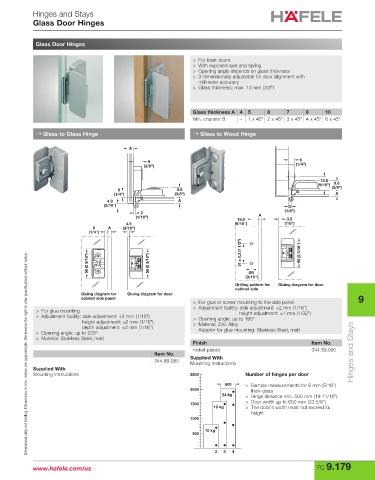

Hinges and Stays
Glass Door Hinges

Glass Door Hinges

> For inset doors
> With exposed axle and spring
> Opening angle depends on glass thickness
> 3-dimensionally adjustable for door alignment with
millimeter accuracy
> Glass thickness: max. 10 mm (3/8")

Glass thickness A 4 5 6 7 8 10
Min. chamfer B – 1 x 45° 2 x 45° 3 x 45° 4 x 45° 6 x 45°

→ Glass to Glass Hinge → Glass to Wood Hinge

A
9 6
(3/8") (1/4")

13.8
(9/16") 9.6
6 9.8 B (3/8")
(1/4") (3/8") A
B
4.9 A
(3/16") 3
2 (1/8")
(1/16") A
13.8 3.5
4.5 (9/16") (1/8")
6 A (3/16")
(1/4")
37 ± 0.2 (1 1/2") 56 (2 3/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
56 (2 3/16") 56 (2 3/16")

Ø5
(3/16")
Drilling pattern for Gluing diagram for door
cabinet side
Gluing diagram for Gluing diagram for door
cabinet side panel 9
> For glue or screw mounting to the side panel
> Adjustment facility: side adjustment: +2 mm (1/16")
> For glue mounting height adjustment: ±1 mm (1/32")
> Adjustment facility: side adjustment: +2 mm (1/16") > Opening angle: up to 195°
height adjustment: ±2 mm (1/16") > Material: Zinc Alloy
depth adjustment: ±2 mm (1/16") Adapter for glue mounting: Stainless Steel, matt
> Opening angle: up to 220°
> Material: Stainless Steel, matt
Finish Item No.
nickel-plated 344.89.090
Item No. Supplied With Hinges and Stays
344.89.080 Mounting Instructions
Supplied With
Mounting Instructions 2500 Number of hinges per door
600 > Sample measurements for 8 mm (5/16")
2000 thick glass
24 kg > Hinge distance min. 500 mm (19 11/16")
> Door width up to 600 mm (23 5/8")
1500
19 kg > The door’s width must not exceed its
height
1000
10 kg
500

2 3 4

www.hafele.com/us FC 9.179
