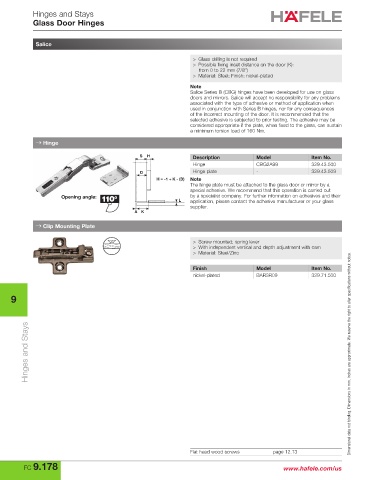

Hinges and Stays
Glass Door Hinges

Salice

> Glass drilling is not required
> Possible fixing inset distance on the door (K):
from 0 to 22 mm (7/8")
> Material: Steel; Finish: nickel-plated
Note
Salice Series B (CBG) hinges have been developed for use on glass
doors and mirrors. Salice will accept no responsibility for any problems
associated with the type of adhesive or method of application when
used in conjunction with Series B hinges, nor for any consequences
of the incorrect mounting of the door. It is recommended that the
selected adhesive is subjected to prior testing. The adhesive may be
considered appropriate if the plate, when fixed to the glass, can sustain
a minimum torsion load of 160 Nm.
→ Hinge

S H Description Model Item No.
Hinge CBG2A99 329.43.500
D Hinge plate - 329.43.509
H = -1 + K - (D) Note
The hinge plate must be attached to the glass door or mirror by a
special adhesive. We recommend that this operation is carried out
Opening angle: by a specialist company. For further information on adhesives and their
application, please contact the adhesive manufacturer or your glass
supplier.
AK
→ Clip Mounting Plate

> Screw mounted; spring lever
> With independent vertical and depth adjustment with cam
> Material: Steel/Zinc

Finish Model Item No.
nickel-plated BAR3R09 329.71.500

9

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Flat head wood screws page 12.13
FC 9.178 www.hafele.com/us
