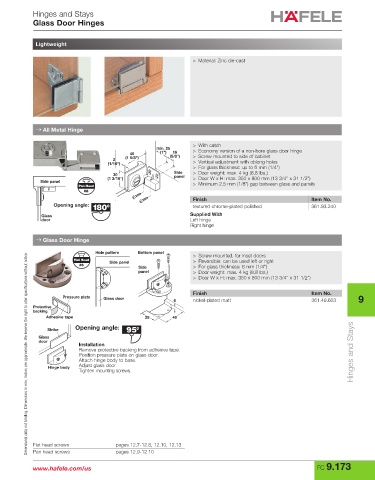

Hinges and Stays
Glass Door Hinges

Lightweight

> Material: Zinc die-cast

→ All Metal Hinge

> With catch
min. 25 > Economy version of a non-bore glass door hinge
16
40 (1") (5/8") > Screw mounted to side of cabinet
2 (1 5/8")
(1/16") > Vertical adjustment with oblong holes
> For glass thickness: up to 6 mm (1/4")
Side > Door weight: max. 4 kg (8.8 lbs.)
30
(1 3/16") panel > Door W x H: max. 350 x 800 mm (13 3/4" x 31 1/2")
Side panel
Pan Head > Minimum 2.5 mm (1/8") gap between glass and panels
#8
Finish Item No.
Opening angle: textured chrome-plated polished 361.93.240
Glass Supplied With
door Left hinge
Right hinge
→ Glass Door Hinge

Hole pattern Bottom panel
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Screw mounted, for inset doors
Flat Head Side panel > Reversible: can be used left or right
#6
Side > For glass thickness: 6 mm (1/4")
panel > Door weight: max. 4 kg (8.8 lbs.)
> Door W x H: max. 350 x 800 mm (13 3/4" x 31 1/2")
Finish Item No.
Pressure plate Glass door 6 nickel-plated matt 361.49.603 9
Protective
backing
Adhesive tape 29 40
Opening angle:
Strike
Glass
door
Installation
Remove protective backing from adhesive tape.
Position pressure plate on glass door. Hinges and Stays
Attach hinge body to base.
Hinge body Adjust glass door.
Tighten mounting screws.

Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
