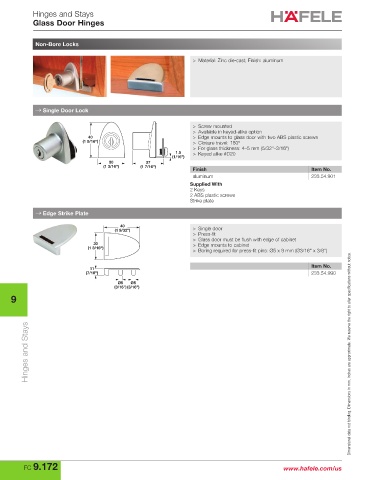

P. 994
Hinges and Stays
Glass Door Hinges
Non-Bore Locks
> Material: Zinc die-cast; Finish: aluminum
→ Single Door Lock
> Screw mounted
> Available in keyed-alike option
40 > Edge mounts to glass door with two ABS plastic screws
(1 9/16") > Closure travel: 180º
> For glass thickness: 4–5 mm (5/32"–3/16")
1.5 > Keyed alike #D20
(1/16")
30 37
(1 3/16") (1 7/16")
Finish Item No.
aluminum 233.54.901
Supplied With
2 Keys
2 ABS plastic screws
Strike plate
→ Edge Strike Plate
40
(1 9/32") > Single door
> Press-fit
> Glass door must be flush with edge of cabinet
30 > Edge mounts to cabinet
(1 3/16")
> Boring required for press-fit pins: Ø5 x 9 mm (Ø3/16" x 3/8")
Item No.
11
(7/16") 233.54.990
Ø5 Ø5
(3/16")(3/16")
9
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 9.172 www.hafele.com/us
