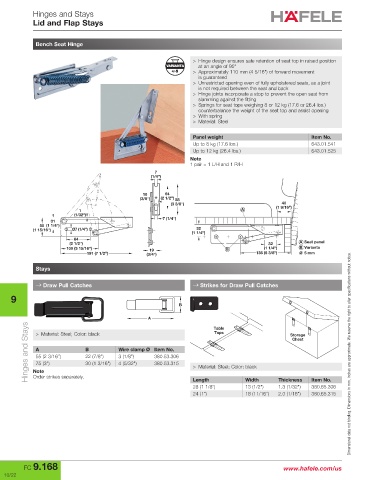

Hinges and Stays
Lid and Flap Stays

Bench Seat Hinge

> Hinge design ensures safe retention of seat top in raised position
VARIANTA at an angle of 95°
5 > Approximately 110 mm (4 5/16") of forward movement
is guaranteed
> Unrestricted opening even of fully upholstered seats, as a joint
is not required between the seat and back
> Hinge joints incorporate a stop to prevent the open seat from
slamming against the fitting
> Springs for seat tops weighing 8 or 12 kg (17.6 or 26.4 lbs.)
counterbalance the weight of the seat top and assist opening
> With spring
> Material: Steel

Panel weight Item No.
Up to 8 kg (17.6 lbs.) 643.01.541
Up to 12 kg (26.4 lbs.) 643.01.525
Note
1 pair = 1 L/H and 1 R/H
7
(1/4")

10 64
(3/8") (2 1/2") 58
40
(3 3/8") (1 9/16")
1 A
(1/32")
31 7 (1/4")
50 (1 1/4")
(1 15/16") Ø7 (1/4") 32
(1 1/4")
64
(2 1/2") 32 A Seat panel
100 (3 15/16") 19 B (1 1/4") B Varianta
191 (7 1/2") (3/4") 136 (5 3/8") Ø 5 mm
Stays

→ Draw Pull Catches → Strikes for Draw Pull Catches
9
B
A Table Storage
Hinges and Stays A B Wire clamp Ø Item No. > Material: Steel; Color: black Chest Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Tops
> Material: Steel; Color: black

380.53.306
3 (1/8")
55 (2 3/16")
22 (7/8")
4 (5/32")
380.53.315
75 (3")
30 (1 3/16")
Note
Order strikes separately.
Length
380.65.306
13 (1/2")
1.3 (1/32")
28 (1 1/8") Width Thickness Item No.
24 (1") 18 (11/16") 2.0 (1/16") 380.65.315

FC 9.168 www.hafele.com/us
10/22
