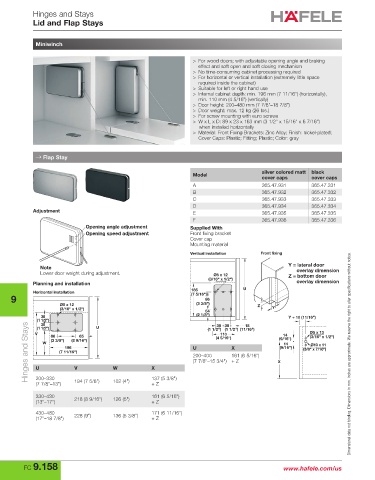

Page 980 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Lid and Flap Stays

Miniwinch

> For wood doors; with adjustable opening angle and braking
effect and soft open and soft closing mechanism
> No time-consuming cabinet processing required
> For horizontal or vertical installation (extremely little space
required inside the cabinet)
> Suitable for left or right hand use
> Internal cabinet depth: min. 196 mm (7 11/16") (horizontally),
min. 110 mm (4 5/16") (vertically)
> Door height: 200–480 mm (7 7/8"–18 7/8")
> Door weight: max. 12 kg (26 lbs.)
> For screw mounting with euro screws
> W x L x D: 89 x 23 x 163 mm (3 1/2" x 15/16" x 6 7/16")
when installed horizontally
> Material: Front Fixing Brackets: Zinc Alloy; Finish: nickel-plated;
Cover Caps: Plastic; Fitting; Plastic; Color: gray

→ Flap Stay

Model silver colored matt black
cover caps cover caps
A 365.47.931 365.47.331
B 365.47.932 365.47.332
C 365.47.933 365.47.333
D 365.47.934 365.47.334
Adjustment E 365.47.935 365.47.335
F 365.47.936 365.47.336
Opening angle adjustment Supplied With
Opening speed adjustment Front fixing bracket
Cover cap
Mounting material
Vertical installation Front fixing
Y = lateral door
Note overlay dimension
Lower door weight during adjustment. Ø5 x 12 Z = bottom door
(3/16" x 1/2")
Planning and installation overlay dimension
185 U
Horizontal installation (7 5/16")
9 86
Ø5 x 12 (3 3/8")
(3/16" x 1/2") 54
38 (2 1/8") Y + 10 (11/16")
(1 1/2") 86 65 U (1 1/2") (1 1/2") (11/16") 14 Ø5 x 13
Hinges and Stays U W (3 3/8") 196 (2 9/16") W X U (4 5/16") X X (9/16") (3/8" x 7/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
38
38 38
18
(1 1/2")
V
110
(3/16" x 1/2")
14
Ø10 x 11
(9/16")
(7 11/16")
161 (6 5/16")
200–400
(7 7/8"–15 3/4") + Z
V
200–330
+ Z
(7 7/8"–13") 194 (7 5/8") 102 (4") 137 (5 3/8")
330–430 161 (6 5/16")
(13"–17") 218 (8 9/16") 126 (5") + Z
430–480 171 (6 11/16")
(17"–18 7/8") 228 (9") 136 (5 3/8") + Z

FC 9.158 www.hafele.com/us
