P. 975
Hinges and Stays
Lid and Flap Stays

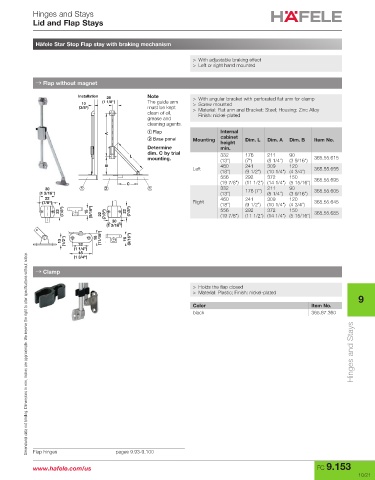

Häfele Star Stop Flap stay with braking mechanism
> With adjustable braking effect
> Left or right hand mounted
→ Flap without magnet
Installation 28 Note > With angular bracket with perforated flat arm for clamp
10 (1 1/8") The guide arm > Screw mounted
(3/8") must be kept > Material: Flat arm and Bracket: Steel; Housing: Zinc Alloy
clean of oil, Finish: nickel-plated
grease and
cleaning agents.
Flap Internal
Base panel Mounting cabinet Dim. L Dim. A Dim. B Item No.
height
Determine min.
dim. C by trial 332 176 211 90
mounting. (13") (7") (8 1/4") (3 9/16") 365.55.615
Left 460 241 309 120 365.55.655
(18") (9 1/2") (10 1/4") (4 3/4")
556 292 372 150 365.55.695
(19 7/8") (11 1/2") (14 1/4") (5 15/16")
30 332 176 (7") 211 90 365.55.605
(1 3/16") (13") (8 1/4") (3 9/16")
22 460 241 309 120
(7/8") Right (18") (9 1/2") (10 1/4") (4 3/4") 365.55.645
22 (7/8") 15 (9/16") 22 (7/8") 22 (7/8") 556 292 372 150 365.55.685
(19 7/8")
(11 1/2") (14 1/4") (5 15/16")
30
(1 3/16")
(1/2") 18 (11/16") 15 (9/16")
13 32
(1 1/4")
45
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 3/4")
→ Clamp
> Holds the flap closed
> Material: Plastic; Finish: nickel-plated
9
Color Item No.
black 365.67.360
Hinges and Stays
Flap hinges pages 9.93-9.100
