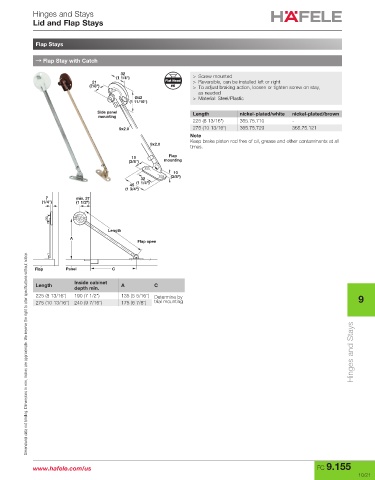

Hinges and Stays
Lid and Flap Stays

Flap Stays

→ Flap Stay with Catch
32
(1 1/4") > Screw mounted
21 Flat Head > Reversible, can be installed left or right
(7/8") #6 > To adjust braking action, loosen or tighten screw on stay,
as needed
Ø42 > Material: Steel/Plastic
(1 11/16")
Side panel Length nickel-plated/white nickel-plated/brown
mounting
225 (8 13/16") 365.75.710 -
9x2.0 275 (10 13/16") 365.75.729 365.75.121
Note
Keep brake piston rod free of oil, grease and other contaminants at all
9x2.0
times.
10 Flap
(3/8") mounting
10
32 (3/8")
(1 1/4")
45
(1 3/4")
7 min. 37
(1/4") (1 1/2")

Length
A
Flap open
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Flap Panel C

Length Inside cabinet A C
depth min.
225 (8 13/16") 190 (7 1/2") 135 (5 5/16") Determine by 9
275 (10 13/16") 240 (9 7/16") 175 (6 7/8") trial mounting
