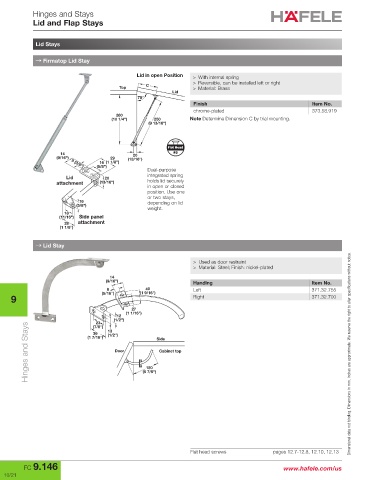

Hinges and Stays
Lid and Flap Stays

Lid Stays

→ Firmatop Lid Stay

Lid in open Position > With internal spring
> Reversible, can be installed left or right
C
Top > Material: Brass
Lid
75°
Finish Item No.
chrome-plated 373.58.919
260
(10 1/4") 250 Note Determine Dimension C by trial mounting.
(9 13/16")

Flat Head
14 20 #5
(9/16") 29 (13/16")
16 (1 1/8")
(5/8")
9 (3/8")
Dual-purpose
Lid 20 integrated spring
attachment (13/16") holds lid securely
in open or closed
position. Use one
or two stays,
16 depending on lid
(5/8")
weight.
18
(11/16") Side panel
28 attachment
(1 1/8")
→ Lid Stay

> Used as door restraint
> Material: Steel; Finish: nickel-plated
14
(9/16") Handing Item No.
8 40 Left 371.32.755
(5/16") (1 9/16")
9 Right 371.32.700
27
(1 1/16")
12
(1/2")
23
Hinges and Stays (1 7/16") Door (5 7/8") Side Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(7/8")
13
36
(1/2")
Cabinet top
150

Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 9.146 www.hafele.com/us
10/21
