Hinges and Stays
Lid and Flap Stays

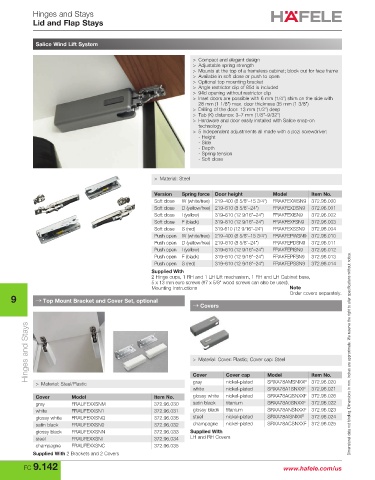

Salice Wind Lift System

> Compact and elegant design
> Adjustable spring strength
> Mounts at the top of a frameless cabinet; block out for face frame
> Available in soft close or push to open
> Optional top mounting bracket
> Angle restrictor clip of 85d is included
> 94d opening without restrictor clip
> Inset doors are possible with 6 mm (1/4") shim on the side with
28 mm (1 1/8") max. door thickness 35 mm (1 3/8")
> Drilling of the door: 13 mm (1/2") deep
> Tab (K) distance: 3–7 mm (1/8"–9/32")
> Hardware and door easily installed with Salice snap-on
technology
> 5 Independent adjustments all made with a pozi screwdriver:
- Height
- Side
- Depth
- Spring tension
- Soft close

> Material: Steel

Version Spring force Door height Model Item No.
Soft close W (white/free) 219–400 (8 5/8"–15 3/4") FRAKFEXWSN9 372.96.000
Soft close D (yellow/free) 219–610 (8 5/8"–24") FRAKFEXDSN9 372.96.001
Soft close I (yellow) 319–610 (12 9/16"–24") FRAKFEXISN9 372.96.002
Soft close F (black) 319–610 (12 9/16"–24") FRAKFEXFSN9 372.96.003
Soft close S (red) 319-610 (12 9/16"–24") FRAKFEXSSN9 372.96.004
Push open W (white/free) 219–400 (8 5/8"–15 3/4") FRAKFEPWSN9 372.96.010
Push open D (yellow/free) 219–610 (8 5/8"–24") FRAKFEPDSN9 372.96.011
Push open I (yellow) 319–610 (12 9/16"–24") FRAKFEPISN9 372.96.012
Push open F (black) 319–610 (12 9/16"–24") FRAKFEPFSN9 372.96.013
Push open S (red) 319–610 (12 9/16"–24") FRAKFEPSSN9 372.96.014
Supplied With
2 Hinge cups, 1 RH and 1 LH Lift mechanism, 1 RH and LH Cabinet base,
5 x 13 mm euro screws (#7 x 5/8" wood screws can also be used),
Mounting Instructions Note
Order covers separately.
9 → Top Mount Bracket and Cover Set, optional
→ Covers

Hinges and Stays > Material: Cover: Plastic; Cover cap: Steel Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

gray
nickel-plated
SRXA78AMSNXXF 372.96.020
> Material: Steel/Plastic Cover Cover cap Model Item No.
white nickel-plated SRXA78A1SNXXF 372.96.021
Cover Model Item No. glossy white nickel-plated SRXA78AQSNXXF 372.96.026
gray FRAUFEXXSNM 372.96.030 satin black titanium SRXA78A0SNXXF 372.96.022
white FRAUFEXXSN1 372.96.031 glossy black titanium SRXA78ANSNXXF 372.96.023
glossy white FRAUFEXXSNQ 372.96.036 steel nickel-plated SRXA78AISNXXF 372.96.024
satin black FRAUFEXXSN0 372.96.032 champagne nickel-plated SRXA78ACSNXXF 372.96.025
glossy black FRAUFEXXSNN 372.96.033 Supplied With
steel FRAUFEXXSNI 372.96.034 LH and RH Covers
champagne FRAUFEXXSNC 372.96.035
Supplied With 2 Brackets and 2 Covers
FC 9.142 www.hafele.com/us
