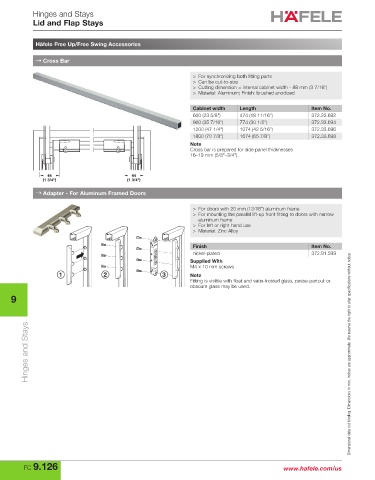

Hinges and Stays
Lid and Flap Stays

Häfele Free Up/Free Swing Accessories

→ Cross Bar

> For synchronizing both fitting parts
> Can be cut-to-size
> Cutting dimension = internal cabinet width - 88 mm (3 7/16")
> Material: Aluminum; Finish: brushed anodized

Cabinet width Length Item No.
600 (23 5/8") 474 (18 11/16") 372.33.692
900 (35 7/16") 774 (30 1/2") 372.33.694
1200 (47 1/4") 1074 (42 5/16") 372.33.696
1800 (70 7/8") 1674 (65 7/8") 372.33.698
Note
Cross bar is prepared for side panel thicknesses
16–19 mm (5/8"–3/4").

44 44
(1 3/4") (1 3/4")

→ Adapter - For Aluminum Framed Doors

> For doors with 20 mm (13/16") aluminum frame
> For mounting the parallel lift-up front fitting to doors with narrow
aluminum frame
> For left or right hand use
> Material: Zinc Alloy

Finish Item No.
nickel-plated 372.91.599
Supplied With
M4 x 10 mm screws
1 2 3 Note
Fitting is visible with float and satin-frosted glass, passe-partout or
obscure glass may be used.
9

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 9.126 www.hafele.com/us
