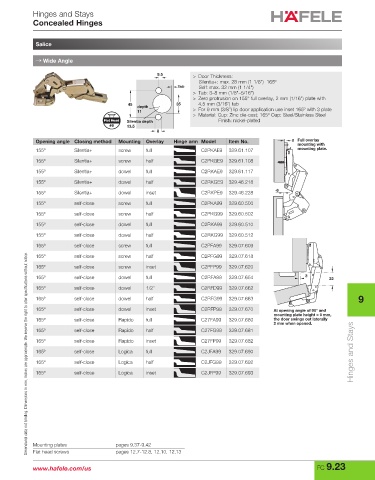

Hinges and Stays 9.5
Concealed Hinges
Tab

Salice 45 depth 35
11
→ Wide Angle Silentia depth
13.5 Self 8
9.5 > Door Thickness:
Silentia+: max. 28 mm (1 1/8") 165º
Tab Self: max. 32 mm (1 1/4")
> Tab: 3–8 mm (1/8"–5/16")
> Zero protrusion on 155° full overlay, 2 mm (1/16") plate with
45 depth 35 4.5 mm (3/16") tab
11 > For 9 mm (3/8") lip door application use inset 165º with 3 plate
> Material: Cup: Zinc die-cast; 165º Cup: Steel/Stainless Steel
Flat Head Silentia depth Finish: nickel-plated
#6 13.5
8
Opening angle Closing method Mounting Overlay Hinge arm Model Item No. 0 Full overlay
mounting with
155º Silentia+ screw full C2PKAE9 329.61.107 mounting plate.
155º Silentia+ screw half C2PKGE9 329.61.108
155º Silentia+ dowel full C2RKAE9 329.61.117
155º Silentia+ dowel half C2RKGE9 329.46.218

155º Silentia+ dowel inset C2RKPE9 329.46.228 -6
155º self-close screw full C2PKA99 329.60.500
155º self-close screw half C2PKG99 329.60.502
155º self-close dowel full C2RKA99 329.60.510
155º self-close dowel half C2RKG99 329.60.512

165º self-close screw full C2PFA99 329.07.609
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
165º self-close screw half C2PFG99 329.07.618
165º self-close screw inset C2PFP99 329.07.620
165º self-close dowel full C2RFA99 329.07.654 3 22
165º self-close dowel 1/2" C2RFD99 329.07.662
165º self-close dowel half C2RFG99 329.07.663 9
165º self-close dowel inset C2RFP99 329.07.670 At opening angle of 90° and
mounting plate height = 0 mm,
165º self-close Rapido full C27FA99 329.07.680 the door swings out laterally
2 mm when opened.
Hinges and Stays
165º self-close Rapido half C27FG99 329.07.681
165º self-close Rapido inset C27FP99 329.07.682
165º self-close Logica full C2JFA99 329.07.690
165º self-close Logica half C2JFG99 329.07.692
165º self-close Logica inset C2JFP99 329.07.693

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
