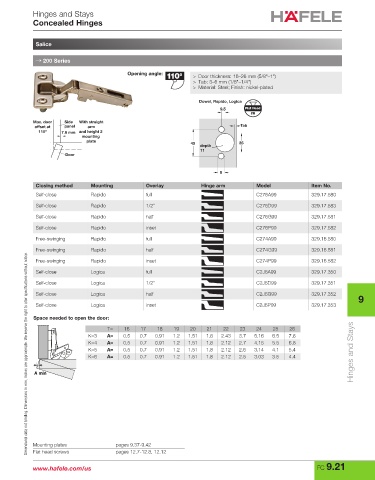

Hinges and Stays
Concealed Hinges

Salice

→ 200 Series
Opening angle: > Door thickness: 16–26 mm (5/8"–1")
> Tab: 3–6 mm (1/8"–1/4")
> Material: Steel; Finish: nickel-plated

Screw mount Dowel, Rapido, Logica
9.5 9.5 Flat Head
#6
Max. door Side With straight
offset at panel arm Tab Tab
110º 7.6 mm and height 2
mounting
plate 45 depth 35 45 depth 35
11 11
Door

8
Closing method Mounting Overlay Hinge arm Model Item No.
Self-close Rapido full C276A99 329.17.580
Self-close Rapido 1/2" C276D99 329.17.583

Self-close Rapido half C276G99 329.17.581
Self-close Rapido inset C276P99 329.17.582
Free-swinging Rapido full C274A99 329.16.580
Free-swinging Rapido half C274G99 329.16.581
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Free-swinging Rapido inset C274P99 329.16.582

Self-close Logica full C2J6A99 329.17.350
Self-close Logica 1/2" C2J6D99 329.17.351
Self-close Logica half C2J6G99 329.17.352
9
Self-close Logica inset C2J6P99 329.17.353
Space needed to open the door:
Hinges and Stays
T= 16 17 18 19 20 21 22 23 24 25 26
K=3 A= 0.5 0.7 0.91 1.2 1.51 1.8 2.43 3.7 5.16 6.5 7.8
K=4 A= 0.5 0.7 0.91 1.2 1.51 1.8 2.12 2.7 4.15 5.5 6.8
K=5 A= 0.5 0.7 0.91 1.2 1.51 1.8 2.12 2.6 3.14 4.1 5.4
K=6 A= 0.5 0.7 0.91 1.2 1.51 1.8 2.12 2.5 3.03 3.5 4.4

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.12
