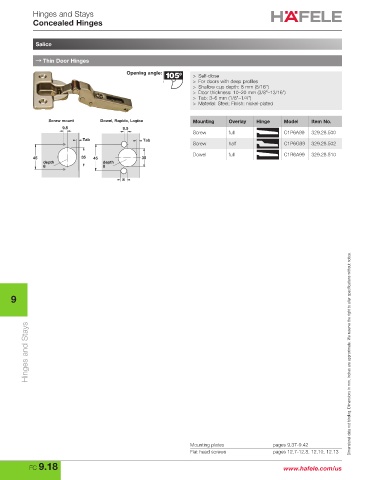

P. 836
Hinges and Stays
Concealed Hinges
Salice
→ Thin Door Hinges
Opening angle:
> Self-close
> For doors with deep profiles
> Shallow cup depth: 8 mm (5/16")
> Door thickness: 10–20 mm (3/8"–13/16")
> Tab: 3–6 mm (1/8"–1/4")
> Material: Steel; Finish: nickel-plated
Screw mount Dowel, Rapido, Logica Mounting Overlay Hinge Model Item No.
9.5 9.5
Screw full C1P6A99 329.28.500
Tab Tab
Screw half C1P6G99 329.28.502
Dowel full C1R6A99 329.28.510
45 35 45 35
depth depth
8 8
8
9
Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 9.18 www.hafele.com/us
