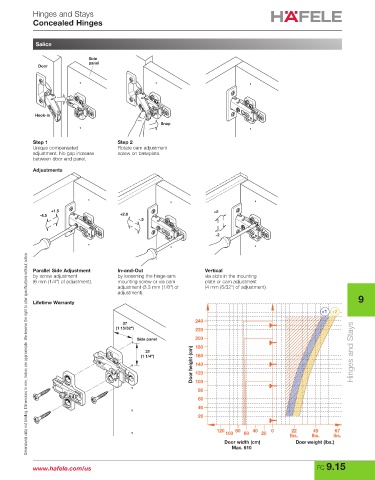

Hinges and Stays
Concealed Hinges

Salice

Side
panel
Side
Door panel
Door

Hook-in
Hook-in
Snap
Snap
Step 1 Step 2
Unique compensated Rotate cam adjustment
adjustment. No gap increase screw on baseplate.
between door and panel.
Adjustments

+1.5 +2
-4.5 +1.5 +2.8 +2
-4.5 +2.8 -.5
-.5
-2
-2

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Parallel Side Adjustment In-and-Out Vertical
by screw adjustment by loosening the hinge-arm via slots in the mounting
(6 mm (1/4") of adjustment). mounting screw or via cam plate or cam adjustment
adjustment (3.3 mm (1/8") of (4 mm (5/32") of adjustment).
adjustment).
Lifetime Warranty 9
+1 +2
240
37
(1 15/32") 220
Side panel 200
Door height (cm) 140
32 180 Hinges and Stays
(1 1/4") 160

120
100
80
60
40
20

120 80 40 0 22 45 67
100 60 20 lbs. lbs. lbs.
Door width (cm) Door weight (lbs.)
Max. 610

www.hafele.com/us FC 9.15
