Hinges and Stays
Institutional Hinges

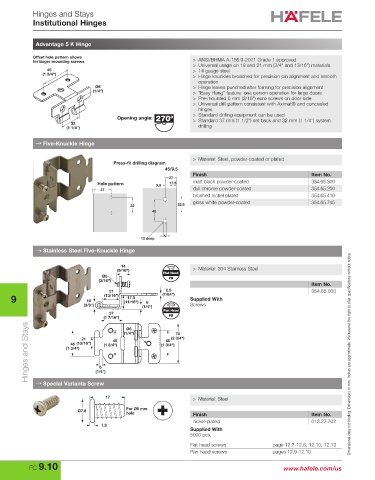

Advantage 5 K Hinge

Offset hole pattern allows > ANSI/BHMA A-156.9-2001 Grade 1 approved
for larger mounting screws
> Universal usage on 19 and 21 mm (3/4" and 13/16") materials
45 > 14 gauge steel
(1 3/4") > Hinge knuckles broached for precision pin alignment and smooth
operation
Ø6 > Hinge leaves punched after forming for precision alignment
(1/4") > “Easy Hang” feature: one person operation for large doors
> Pre-mounted 5 mm (3/16") euro screws on door side
> Universal drill pattern consistent with Aximat® and concealed
hinges
> Standard drilling equipment can be used
Opening angle: > Standard 37 mm (1 1/2") set back and 32 mm (1 1/4") system
32
(1 1/4") drilling
→ Five-Knuckle Hinge

> Material: Steel, powder-coated or plated
Press-fit drilling diagram
45/9.5
Finish Item No.
27
Hole pattern 9.5 17.5 matt black powder-coated 354.65.300
37 dull chrome powder-coated 354.65.200
brushed nickel plated 354.65.410
gloss white powder-coated 354.65.745
32 22.5
45

5
13 deep
→ Stainless Steel Five-Knuckle Hinge

14
(9/16") > Material: 304 Stainless Steel
Flat Head
Ø5 #8
(3/16")
Item No.
2.5
21 (7/64") 354.65.000
9 10 (13/16") 17.5 Supplied With
6
(3/8") (11/16") (1/4") Screws
Pan Head
37
(1 7/16") (1/4") #8 70
Hinges and Stays (1 3/4") 21 (1/4") (1 3/4") (1 3/4") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø6
(2 3/4")
45
45
45 (13/16")
6

→ Special Varianta Screw
17 > Material: Steel

Ø7.8 For Ø5 mm
hole Finish Item No.
nickel-plated 013.27.702
1.9
Supplied With
5000 pcs.
Flat head screws page 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
FC 9.10 www.hafele.com/us
