Hinges and Stays
Institutional Hinges

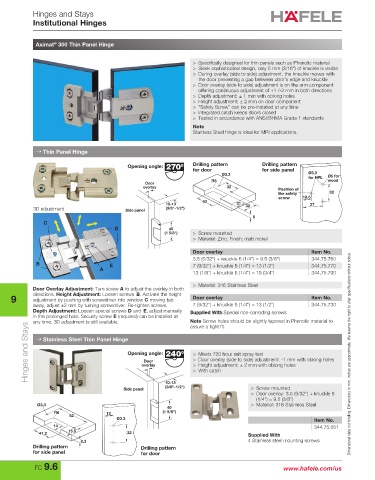

Aximat 300 Thin Panel Hinge
®

> Specifically designed for thin panels such as Phenolic material
> Sleek sophisticated design, only 5 mm (3/16") of knuckle is visible
> During overlay (side to side) adjustment, the knuckle moves with
the door preventing a gap between door’s edge and knuckle
> Door overlay (side to side) adjustment is on the arm component
offering continuous adjustment of +1 /-2 mm in both directions
> Depth adjustment: ± 1 mm with oblong holes
> Height adjustment: ± 2 mm on door component
> “Safety Screw” can be pre-installed at any time
> Integrated catch keeps doors closed
> Tested in accordance with ANSI/BHMA Grade 1 standards
Note
Stainless Steel hinge is ideal for MRI applications.

→ Thin Panel Hinge

Opening angle: Drilling pattern Drilling pattern
for door for side panel
Ø3.3 Ø3.3 Ø5 for
R6 for HPL wood
Door
overlay 32
Position of
the safety 32
screw 18.5
40
10-13 21 32 37
3D adjustment Side panel (3/8"-1/2")
8
C
D 40
(1 5/8") > Screw mounted
> Material: Zinc; Finish: matt nickel
Door overlay Item No.
3.5 (5/32") + knuckle 6 (1/4") = 9.5 (3/8") 344.75.760
B E 7 (9/32") + knuckle 6 (1/4") = 13 (1/2") 344.75.770
A
13 (1/8") + knuckle 6 (1/4") = 19 (3/4") 344.75.790

> Material: 316 Stainless Steel
Door Overlay Adjustment: Turn screw A to adjust the overlay in both
9 directions. Height Adjustment: Loosen screws B. Activate the height Door overlay Item No.
adjustment by pushing with screwdriver into window C moving tab
away, adjust ±2 mm by turning screwdriver. Re-tighten screws. 7 (9/32") + knuckle 6 (1/4") = 13 (1/2") 344.75.730
Depth Adjustment: Loosen special screws D and E, adjust manually Supplied With Special non-corroding screws
in the prolonged hole. Security screw E (required) can be installed at
any time, 3D adjustment is still available. Note Screw holes should be slightly tapered in Phenolic material to
Hinges and Stays → Stainless Steel Thin Panel Hinge Opening angle: > Meets 720 hour salt spray test Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
assure a tight fit.

> Door overlay (side to side) adjustment: -1 mm with oblong holes
Door
> Height adjustment: ± 2 mm with oblong holes
overlay
> With catch
(3/8"-1/2")
Side panel 10-13 > Screw mounted
> Door overlay: 3.5 (9/32") + knuckle 6
(1/4") = 9.5 (3/8")
Ø3.3 > Material: 316 Stainless Steel
40
R6 12 (1 5/8")
52
Ø3.3 Item No.
14 344.75.051
15.5
41.2 32 Supplied With
8.3 4 Stainless steel mounting screws
Drilling pattern Drilling pattern
for side panel for door
