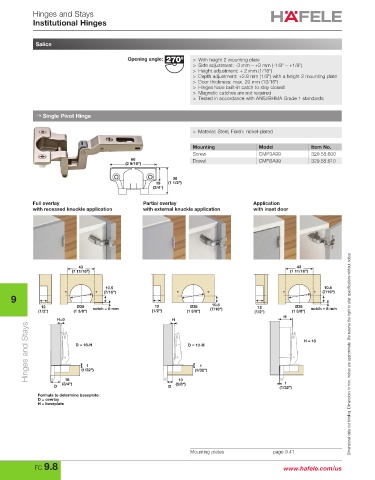

Hinges and Stays
Institutional Hinges

Salice

Opening angle: > With height 2 mounting plate
> Side adjustment: -3 mm – +3 mm (-1/8" – +1/8")
> Height adjustment: + 2 mm (1/16")
> Depth adjustment: +2.8 mm (1/8") with a height 2 mounting plate
> Door thickness: max. 20 mm (13/16")
> Hinges have built-in catch to stay closed
> Magnetic catches are not required
> Tested in accordance with ANSI/BHMA Grade 1 standards

→ Single Pivot Hinge

> Material: Steel; Finish: nickel-plated

Mounting Model Item No.
Screw CMP3A99 329.58.600
66 Dowel CMR3A99 329.58.610
(2 9/16")

38
19 (1 1/2")
(3/4")

Full overlay Partial overlay Application
with recessed knuckle application with external knuckle application with inset door

43 43
(7 11/16") (1 11/16")

10.5 10.5
(7/16") (7/16")
9
10.5
12 Ø35 notch = 8 mm 12 Ø35 (7/16") 12 Ø35 notch = 8 mm
(1/2") (1 3/8") (1/2") (1 3/8") (1/2") (1 3/8")
H
H=0 H
Hinges and Stays D = 18-H D = 10-H H = 18 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

1
1
18
10
1
D (3/4") (1/32") D (3/8") (1/32") (1/32")
Formula to determine baseplate:
D = overlay
H = baseplate

Mounting plates page 9.41
