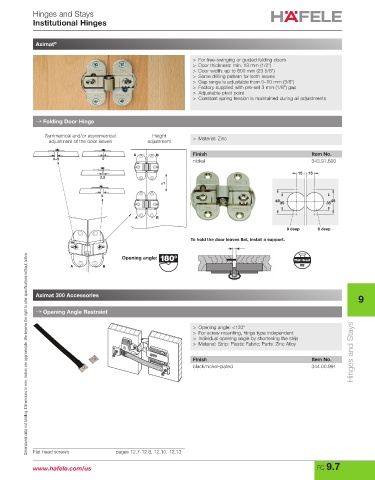

Hinges and Stays
Institutional Hinges

Aximat ®

> For free-swinging or guided folding doors
> Door thickness: min. 13 mm (1/2")
> Door width: up to 600 mm (23 5/8")
> Same drilling pattern for both leaves
> Gap range is adjustable from 0–10 mm (3/8")
> Factory supplied with pre-set 3 mm (1/8") gap
> Adjustable pivot point
> Constant spring tension is maintained during all adjustments

→ Folding Door Hinge

Symmetrical and/or asymmetrical Height
adjustment of the door leaves adjustment > Material: Zinc

A B Finish Item No.
0–5 0
nickel 343.91.600
15 15
2.5
±1
5
48 35 35 48

A B
9 deep 9 deep
To hold the door leaves flat, install a support.

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Opening angle:
Flat Head
A B #8

Aximat 300 Accessories
9
→ Opening Angle Restraint

> Opening angle: <120°
> For screw mounting, hinge type independent
> Individual opening angle by shortening the strip
> Material: Strip: Plastic Fabric; Parts: Zinc Alloy

Finish Item No. Hinges and Stays
black/nickel-plated 344.00.991

Flat head screws pages 12.7-12.8, 12.10, 12.13
