Hinges and Stays
Institutional Hinges

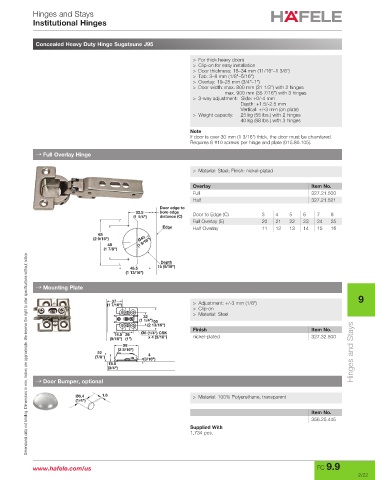

Concealed Heavy Duty Hinge Sugatsune J95

> For thick heavy doors
> Clip-on for easy installation
> Door thickness: 18–34 mm (11/16"–1 3/8")
> Tab: 3–8 mm (1/8"–5/16")
> Overlay: 19–25 mm (3/4"–1")
> Door width: max. 800 mm (31 1/2") with 2 hinges
max. 900 mm (35 7/16") with 3 hinges
> 3-way adjustment: Side: +0/-4 mm
Depth: +1.5/-2.5 mm
Vertical: +/-3 mm (on plate)
> Weight capacity: 25 kg (55 lbs.) with 2 hinges
40 kg (88 lbs.) with 3 hinges
Note
If door is over 30 mm (1 3/16") thick, the door must be chamfered.
Requires 6 #10 screws per hinge and plate (015.80.105).

→ Full Overlay Hinge

> Material: Steel; Finish: nickel-plated

Overlay Item No.
Full 327.21.500
Half 327.21.521
Door edge to
32.5 bore edge Door to Edge (C) 3 4 5 6 7 8
(1 1/4") distance (C)
Full Overlay (E) 20 21 22 23 24 25
Edge Half Overlay 11 12 13 14 15 16
65
(2 9/16") Ø40
48 (1 9/16")
(1 7/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Depth
45.5 15 (9/16")
(1 13/16")

→ Mounting Plate
9
37 > Adjustment: +/-3 mm (1/8")
(1 7/16")
> Clip-on
> Material: Steel
32
(1 1/4") 55
(2 13/16")
Finish Item No.
14.5 26 Ø6 (1/4") CSK nickel-plated 327.32.500
(9/16") (1") x 4 (3/16")
58
(2 5/16")
22 4 Hinges and Stays
(7/8") (3/16")
18.5
(3/4")
→ Door Bumper, optional

Ø6.4 1.6 > Material: 100% Polyurethane, transparent
(1/4")

Item No.
356.25.445
Supplied With
1,734 pcs.
