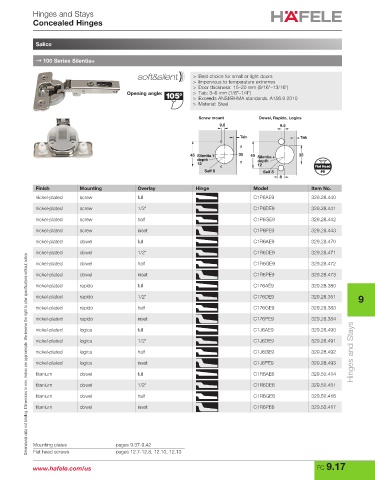

Hinges and Stays
Concealed Hinges

Salice

→ 100 Series Silentia+

> Best choice for small or light doors
> Impervious to temperature extremes
> Door thickness: 15–20 mm (9/16"–13/16")
Opening angle: > Tab: 3–6 mm (1/8"–1/4")
> Exceeds ANSI/BHMA standards. A156.9 2010
> Material: Steel

Screw mount Dowel, Rapido, Logica
9.5 9.5

Tab Tab

45 Silentia + 35 45 Silentia + 35
depth depth
12 12 Flat Head
Self 8 Self 8 #6
8
Finish Mounting Overlay Hinge Model Item No.
nickel-plated screw full C1P6AE9 329.28.440
nickel-plated screw 1/2" C1P6DE9 329.28.441
nickel-plated screw half C1P6GE9 329.28.442
nickel-plated screw inset C1P6PE9 329.28.443

nickel-plated dowel full C1R6AE9 329.28.470
nickel-plated dowel 1/2" C1R6DE9 329.28.471
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
nickel-plated dowel half C1R6GE9 329.28.472
nickel-plated dowel inset C1R6PE9 329.28.473

nickel-plated rapido full C176AE9 329.28.380
nickel-plated rapido 1/2" C176DE9 329.28.351 9
nickel-plated rapido half C176GE9 329.28.383
nickel-plated rapido inset C176PE9 329.28.384
Hinges and Stays
nickel-plated logica full C1J6AE9 329.28.490
nickel-plated logica 1/2" C1J6DE9 329.28.491
nickel-plated logica half C1J6GE9 329.28.492
nickel-plated logica inset C1J6PE9 329.28.493

titanium dowel full C1R6AE6 329.50.414
titanium dowel 1/2" C1R6DE6 329.50.451
titanium dowel half C1R6GE6 329.50.416
titanium dowel inset C1R6PE6 329.50.417

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
