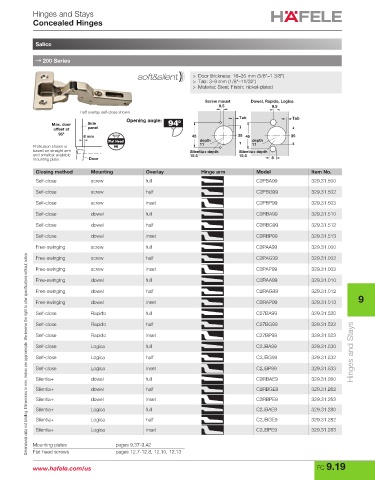

Hinges and Stays
Concealed Hinges

Salice

→ 200 Series

> Door thickness: 16–35 mm (5/8"–1 3/8")
> Tab: 3–9 mm (1/8"–11/32")
> Material: Steel; Finish: nickel-plated

Screw mount Dowel, Rapido, Logica
9.5 9.5
Half overlay self-close shown
Opening angle: Tab Tab
Max. door Side
offset at panel
95º 35 45
8 mm 45 35
Flat Head depth depth
Protrusion shown is #6 11 11
based on straight arm Silentia+ depth Silentia+ depth
and smallest available 15.5 15.5
mounting plate. Door 8
Closing method Mounting Overlay Hinge arm Model Item No.
Self-close screw full C2PBA99 329.31.500
Self-close screw half C2PBG99 329.31.502

Self-close screw inset C2PBP99 329.31.503
Self-close dowel full C2RBA99 329.31.510
Self-close dowel half C2RBG99 329.31.512

Self-close dowel inset C2RBP99 329.31.513
Free-swinging screw full C2PAA99 329.31.000
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Free-swinging screw half C2PAG99 329.31.002
Free-swinging screw inset C2PAP99 329.31.003
Free-swinging dowel full C2RAA99 329.31.010

Free-swinging dowel half C2RAG99 329.31.012
9
Free-swinging dowel inset C2RAP99 329.31.013
Self-close Rapido full C27BA99 329.31.520

Self-close Rapido half C27BG99 329.31.522
Self-close Rapido inset C27BP99 329.31.523
Self-close Logica full C2JBA99 329.31.530
Self-close Logica half C2JBG99 329.31.532 Hinges and Stays
Self-close Logica inset C2JBP99 329.31.533

Silentia+ dowel full C2RBAE9 329.31.260
Silentia+ dowel half C2RBGE9 329.31.262
Silentia+ dowel inset C2RBPE9 329.31.263
Silentia+ Logica full C2JBAE9 329.31.280
Silentia+ Logica half C2JBGE9 329.31.282
Silentia+ Logica inset C2JBPE9 329.31.283

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
