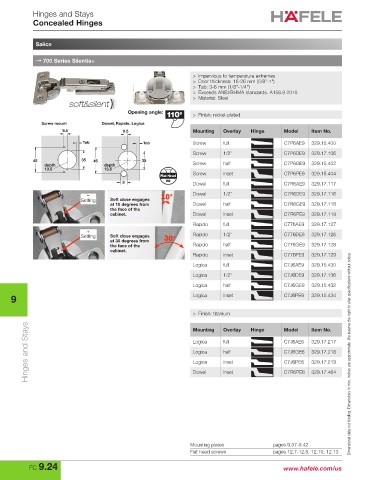

Hinges and Stays
Concealed Hinges

Salice

→ 700 Series Silentia+

> Impervious to temperature extremes
> Door thickness: 16-26 mm (5/8"-1")
> Tab: 3-6 mm (1/8"-1/4")
> Exceeds ANSI/BHMA standards. A156.9 2010
> Material: Steel

Opening angle: > Finish: nickel-plated

Screw mount Dowel, Rapido, Logica
9.5 9.5 Mounting Overlay Hinge Model Item No.

Tab Tab Screw full C7P6AE9 329.15.400
Screw 1/2" C7P6DE9 329.17.106
45 35 45 35
depth depth Screw half C7P6GE9 329.15.402
13.5 13.5
Flat Head Screw inset C7P6PE9 329.15.404
8 #6 Dowel full C7R6AE9 329.17.117
– Dowel 1/2" C7R6DE9 329.17.116
Setting Soft close engages
at 10 degrees from Dowel half C7R6GE9 329.17.118
the face of the
cabinet. Dowel inset C7R6PE9 329.17.119
Rapido full C776AE9 329.17.127
+
Setting Soft close engages Rapido 1/2" C776DE9 329.17.126
at 30 degrees from
the face of the Rapido half C776GE9 329.17.128
cabinet.
Rapido inset C776PE9 329.17.129
Logica full C7J6AE9 329.15.430

Logica 1/2" C7J6DE9 329.17.136
Logica half C7J6GE9 329.15.432
9 Logica inset C7J6PE9 329.15.434

> Finish: titanium Hinge Model Item No.

Hinges and Stays Logica full C7J6AE6 329.17.217 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Overlay
Mounting

C7J6GE6
half
Logica
329.17.218
inset
C7J6PE6
Logica
329.17.219
C7R6PE6
329.17.464
Dowel
inset

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 9.24 www.hafele.com/us
