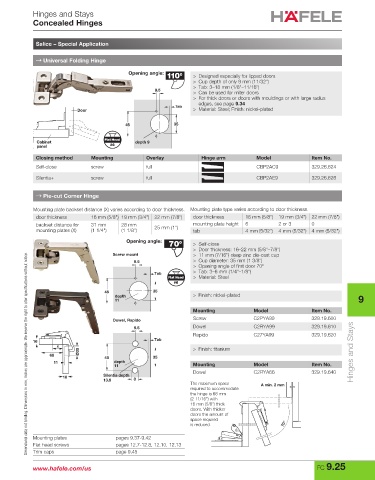

Hinges and Stays
Concealed Hinges

Salice – Special Application

→ Universal Folding Hinge
Opening angle:
> Designed especially for lipped doors
> Cup depth of only 9 mm (11/32")
> Tab: 3–18 mm (1/8"–11/16")
9.5
> Can be used for miter doors
> For thick doors or doors with mouldings or with large radius
edges, see page 9.34
Tab
Door > Material: Steel; Finish: nickel-plated
45 35

Flat Head
Cabinet depth 9
panel #6
Closing method Mounting Overlay Hinge arm Model Item No.
Self-close screw full CBP2AC9 329.26.624

Silentia+ screw full CBP2AE9 329.26.626

→ Pie-cut Corner Hinge

Mounting plate backset distance (X) varies according to door thickness. Mounting plate type varies according to door thickness.
door thickness 16 mm (5/8") 19 mm (3/4") 22 mm (7/8") door thickness 16 mm (5/8") 19 mm (3/4") 22 mm (7/8")
backset distance for 31 mm 28 mm 25 mm (1") mounting plate height 6 2 or 3 0
mounting plates (X) (1 1/4") (1 1/8") tab 4 mm (5/32") 4 mm (5/32") 4 mm (5/32")
Opening angle:
> Self-close
> Door thickness: 16–22 mm (5/8"–7/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Screw mount > 11 mm (7/16") deep zinc die-cast cup
9.5 > Cup diameter: 35 mm (1 3/8")
> Opening angle of first door 70º
Tab > Tab: 3–6 mm (1/4"–1/8")
Flat Head > Material: Steel
#6
45 35
depth > Finish: nickel-plated
11 9
Mounting Model Item No.
Dowel, Rapido Screw C2PYA99 329.19.600
9.5 Dowel C2RYA99 329.19.610
Rapido C27YA99 329.19.620
16 Tab
x > Finish: titanium
Ø35 Hinges and Stays
68
45 35
11 depth Mounting Model Item No.
11
Dowel C2RYA66 329.19.640
16 Silentia depth
13.5 8
The maximum space A min. 2 mm
required to accommodate
the hinge is 68 mm
(2 11/16") with
16 mm (5/8") thick
doors. With thicker
doors the amount of
space required
is reduced. 70°
Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
Trim caps page 9.45
