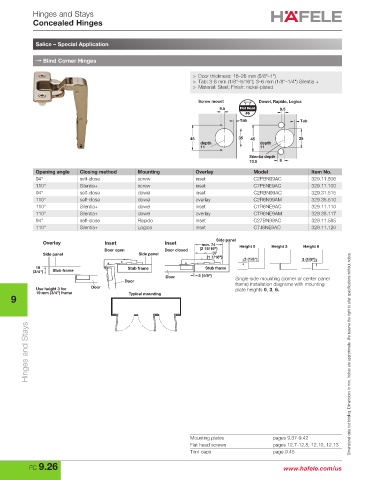

Hinges and Stays
Concealed Hinges

Salice – Special Application

→ Blind Corner Hinges

> Door thickness: 16–26 mm (5/8"–1")
> Tab: 3-8 mm (1/8"–5/16"); 3–6 mm (1/8"–1/4") Silentia +
> Material: Steel; Finish: nickel-plated

Screw mount Dowel, Rapido, Logica
9.5 Flat Head 9.5
#6
Tab Tab

45 35 45 35
depth depth
11 11
Silentia depth
13.5 8
Opening angle Closing method Mounting Overlay Model Item No.
94° self-close screw inset C2PBN99AC 329.11.506
110° Silentia+ screw inset C7P6NE9AC 329.11.100
94° self-close dowel inset C2RBN99AC 329.31.515
110° self-close dowel overlay C2R6N99AM 329.35.510
110° Silentia+ dowel inset C7R6NE9AC 329.11.110
110° Silentia+ dowel overlay C7R6NE9AM 329.35.117
94° self-close Rapido inset C27BN99AC 329.11.585
110° Silentia+ Logica inset C7J6NE9AC 329.11.120
Side panel
Overlay Inset Inset min. 74 Height 0 Height 3 Height 6
Door open Door closed (2 15/16")
Side panel Side panel 37
(1 7/16") 3 (1/8") 3 (1/8")
19 Stub frame Stub frame
(3/4") Stub frame
Door 3 (1/8") Single-side mounting (corner or center panel
Door frame) installation diagrams with mounting
Use height 3 for Door plate heights 0, 3, 6.
19 mm (3/4") frame Typical mounting
9

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
Trim caps page 9.45
FC 9.26 www.hafele.com/us
