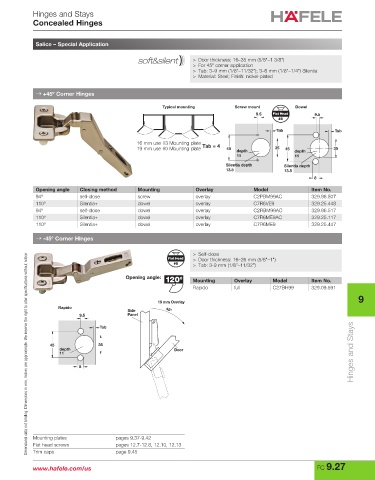

Hinges and Stays
Concealed Hinges

Salice – Special Application

> Door thickness: 16–35 mm (5/8"–1 3/8")
> For 45º corner application
> Tab: 3–9 mm (1/8"–11/32"); 3–6 mm (1/8"–1/4") Silentia
> Material: Steel; Finish: nickel-plated

→ +45º Corner Hinges

Typical mounting Screw mount Dowel
9.5 Flat Head 9.5
#6
Tab Tab
16 mm use #3 Mounting plate
19 mm use #0 Mounting plate Tab = 4 45 depth 35 45 depth 35
19 11 11
(3/4") 3
(1/8") Silentia depth Silentia depth
13.5 13.5
8
37
Opening angle Closing method Mounting (1 7/16") Model Item No.
Overlay
94º self-close screw overlay C2PBM99AC 329.96.507
110º Silentia+ dowel overlay C7R6VE9 329.25.448
94º self-close dowel 4 overlay C2RBM99AC 329.96.517
110º Silentia+ dowel (3/16") overlay C7R6ME9AC 329.25.117
19
110º Silentia+ dowel (3/4") C7R6ME9 329.25.447
overlay
→ -45º Corner Hinges

> Self-close
Flat Head > Door thickness: 16–26 mm (5/8"–1")
#6 > Tab: 3-9 mm (1/8"–11/32")

Opening angle:
Mounting Overlay Model Item No.
Rapido full C27BH99 329.09.591
9
19 mm Overlay
Screw mount Rapido
Side 45º
9.5 9.5 Panel
Tab Tab

45 35 45 35
depth depth Door
11 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice. 11 Hinges and Stays
8

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
Trim caps page 9.45
