P. 846

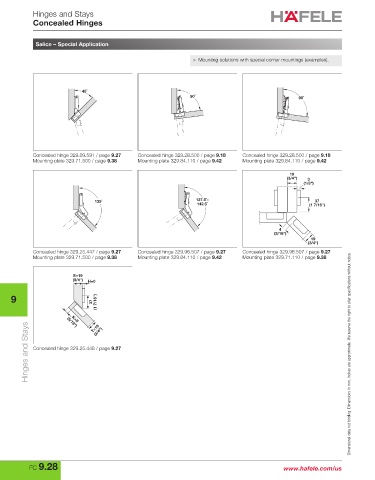

Hinges and Stays
Concealed Hinges
Salice – Special Application
> Mounting solutions with special corner mountings (examples).
45˚
90˚ 90˚
Typical mounting
Concealed hinge 329.09.591 / page 9.27 Concealed hinge 329.28.500 / page 9.18 Concealed hinge 329.28.500 / page 9.18
Mounting plate 329.71.500 / page 9.38 Mounting plate 329.84.110 / page 9.42 Mounting plate 329.84.110 / page 9.42
19
(3/4") 3
(1/8")
135˚ 127.5˚– 37
142.5˚ (1 7/16")
4
(3/16")
19
(3/4")
Concealed hinge 329.25.447 / page 9.27 Concealed hinge 329.96.507 / page 9.27 Concealed hinge 329.96.507 / page 9.27
Mounting plate 329.71.500 / page 9.38 Mounting plate 329.84.110 / page 9.42 Mounting plate 329.71.110 / page 9.38
S=19
(3/4") H=0
9 (5/16") 37 (1 7/16")
K=8
Hinges and Stays Concealed hinge 329.25.448 / page 9.27 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
T=19
(3/4")
FC 9.28 www.hafele.com/us
