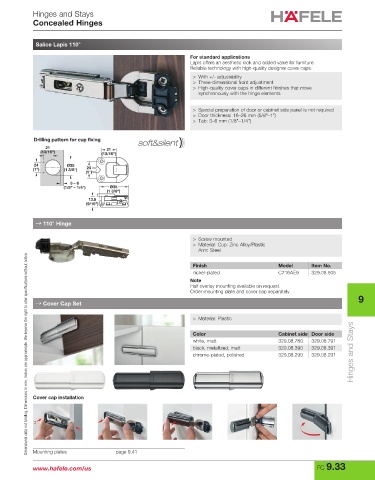

Page 851 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Concealed Hinges

Salice Lapis 110°

For standard applications
Lapis offers an aesthetic look and added value for furniture.
Reliable technology with high-quality designer cover caps.
> With +/- adjustability
> Three-dimensional front adjustment
> High-quality cover caps in different finishes that move
synchronously with the hinge elements

> Special preparation of door or cabinet side panel is not required
> Door thickness: 16–26 mm (5/8"–1")
> Tab: 3–6 mm (1/8"–1/4")

Drilling pattern for cup fixing
21 21
(13/16") (13/16")
24 Ø35
(1") (1 3/8") 24
(1")
3 – 6
(1/8" – 1/4") Ø35
(1 3/8")
13.5
(9/16")

→ 110° Hinge

> Screw mounted
> Material: Cup: Zinc Alloy/Plastic
Arm: Steel
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Finish Model Item No.
nickel-plated C716AE9 329.08.505
Note
Half overlay mounting available on request.
Order mounting plate and cover cap separately.
9
→ Cover Cap Set

> Material: Plastic
Hinges and Stays
Color Cabinet side Door side
white, matt 329.08.780 329.08.791
black, metallized, matt 329.08.390 329.08.391
chrome-plated, polished 329.08.290 329.08.291

Cover cap installation

Mounting plates page 9.41

www.hafele.com/us FC 9.33
