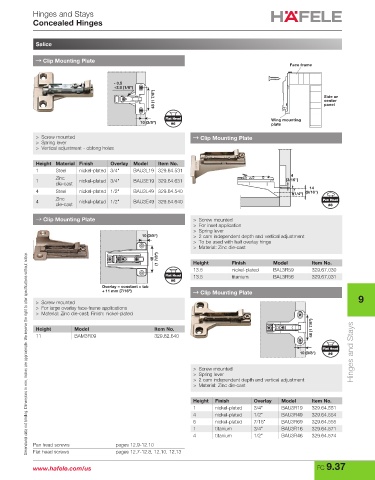

Hinges and Stays
Concealed Hinges

Salice

→ Clip Mounting Plate
Face frame

- 0.5
+2.8 (1/8")
48 (1 7/8") Side or
center
panel

Flat Head Wing mounting
10 (3/8") #6 plate
> Screw mounted → Clip Mounting Plate
> Spring lever
> Vertical adjustment - oblong holes

Height Material Finish Overlay Model Item No.
1 Steel nickel-plated 3/4" BAU3L19 329.64.531
4
Zinc
1 nickel-plated 3/4" BAU3E19 329.64.631 (3/16")
die-cast
14
4 Steel nickel-plated 1/2" BAU3L49 329.64.540 7 (1/4") (9/16")
Zinc Pan Head
4 die-cast nickel-plated 1/2" BAU3E49 329.64.640 #8
→ Clip Mounting Plate > Screw mounted
> For inset application
> Spring lever
10 (3/8") > 2 cam independent depth and vertical adjustment
> To be used with half overlay hinge
> Material: Zinc die-cast
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 7/8")
48 Height Finish Model Item No.
13.5 nickel-plated BAL3R59 329.67.030
Flat Head 13.5 titanium BAL3R56 329.67.031
#6
Overlay = constant + tab
+ 11 mm (7/16") → Clip Mounting Plate
> Screw mounted 9
> For large overlay face-frame applications
> Material: Zinc die-cast; Finish: nickel-plated

Height Model Item No. 48 (1 7/8")
11 BAM3R09 329.82.640

Flat Head
10 (3/8") #6 Hinges and Stays
> Screw mounted
> Spring lever
> 2 cam independent depth and vertical adjustment
> Material: Zinc die-cast

Height Finish Overlay Model Item No.
1 nickel-plated 3/4" BAU3R19 329.64.551
4 nickel-plated 1/2" BAU3R49 329.64.554
6 nickel-plated 7/16" BAU3R69 329.64.555
1 titanium 3/4" BAU3R16 329.64.571
4 titanium 1/2" BAU3R46 329.64.574
Pan head screws pages 12.9-12.10
Flat head screws pages 12.7-12.8, 12.10, 12.13
