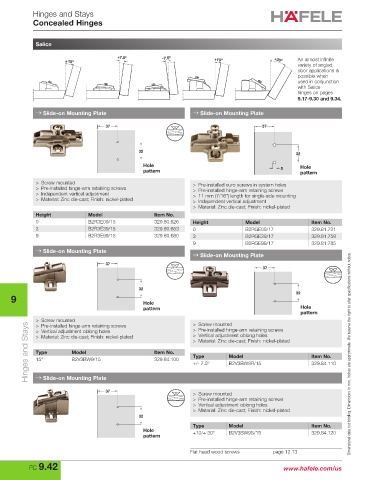

Hinges and Stays
Concealed Hinges

Salice

+7.5º -7.5º
+15º +10º +30º An almost infinite
variety of angled
door applications is
possible when
used in conjunction
with Salice
hinges on pages
9.17-9.30 and 9.34.
→ Slide-on Mounting Plate → Slide-on Mounting Plate

37 37

32
32
Hole Hole
pattern 5 pattern

> Screw mounted > Pre-installed euro screws in system holes
> Pre-installed hinge-arm retaining screws > Pre-installed hinge-arm retaining screws
> Independent vertical adjustment > 11 mm (7/16") length for single-side mounting
> Material: Zinc die-cast; Finish: nickel-plated > Independent vertical adjustment
> Material: Zinc die-cast; Finish: nickel-plated
Height Model Item No.
0 B2R3E09/15 329.80.626 Height Model Item No.
3 B2R3E39/15 329.80.653 0 B2RGE09/17 329.81.721
9 B2R3E99/15 329.80.680 3 B2RGE39/17 329.81.758
9 B2RGE99/17 329.81.785
→ Slide-on Mounting Plate
→ Slide-on Mounting Plate
37
37

32
32
9 Hole
pattern Hole
pattern
> Screw mounted > Screw mounted
Hinges and Stays > Material: Zinc die-cast; Finish: nickel-plated Item No. > Material: Zinc die-cast; Finish: nickel-plated Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Pre-installed hinge-arm retaining screws
> Pre-installed hinge-arm retaining screws
> Vertical adjustment oblong holes
> Vertical adjustment oblong holes
Model
Type
Model
Type
B2V3BW9/15
329.84.100
15°
B2V3BW9R/15
+/- 7.5º
329.84.110
→ Slide-on Mounting Plate
37
> Screw mounted
> Pre-installed hinge-arm retaining screws
> Vertical adjustment oblong holes
> Material: Zinc die-cast; Finish: nickel-plated
32
Type Model Item No.
Hole +10/+ 30° B2V3BW9S/15 329.84.120
pattern
Flat head wood screws page 12.13
FC 9.42 www.hafele.com/us
