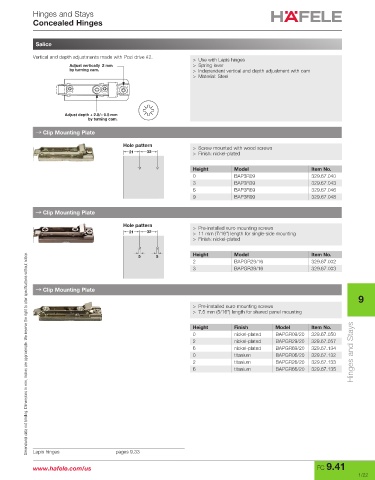

Hinges and Stays
Concealed Hinges

Salice

Vertical and depth adjustments made with Pozi drive #2. > Use with Lapis hinges
Adjust vertically 2 mm > Spring lever
by turning cam. > Independent vertical and depth adjustment with cam
> Material: Steel

Adjust depth + 2.8/– 0.5 mm
by turning cam.
Length
→ Clip Mounting Plate

Hole pattern > Screw mounted with wood screws
21 32 > Finish: nickel-plated

Height Model Item No.
0 BAP3R09 329.67.040
3 BAP3R39 329.67.043
6 BAP3R69 329.67.046
9 BAP3R99 329.67.048

→ Clip Mounting Plate
Hole pattern > Pre-installed euro mounting screws
21 32 > 11 mm (7/16") length for single-side mounting
> Finish: nickel-plated

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
5 5 Height Model Item No.
2 BAPGR29/16 329.67.002
3 BAPGR39/16 329.67.003

→ Clip Mounting Plate
9
> Pre-installed euro mounting screws
> 7.5 mm (5/16") length for shared panel mounting

Height Finish Model Item No.
0 nickel-plated BAPGR09/20 329.67.050
2 nickel-plated BAPGR29/20 329.67.057
6 nickel-plated BAPGR69/20 329.67.134
0 titanium BAPGR06/20 329.67.132 Hinges and Stays
2 titanium BAPGR26/20 329.67.133
6 titanium BAPGR66/20 329.67.135

Lapis hinges pages 9.33

www.hafele.com/us FC 9.41
