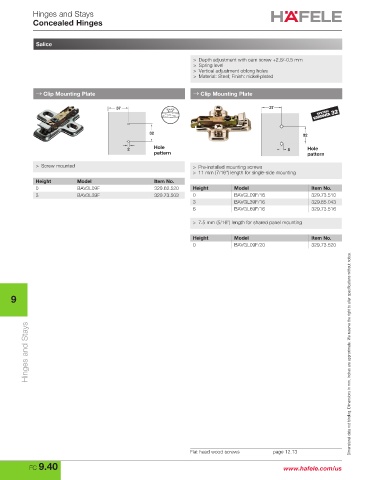

Hinges and Stays
Concealed Hinges

Salice

> Depth adjustment with cam screw +2.8/-0.5 mm
> Spring level
> Vertical adjustment oblong holes
> Material: Steel; Finish: nickel-plated

→ Clip Mounting Plate → Clip Mounting Plate

37 37

32
32
2 Hole 5 Hole
pattern pattern
> Screw mounted > Pre-installed mounting screws
> 11 mm (7/16") length for single-side mounting
Height Model Item No.
0 BAV3L09F 329.62.520 Height Model Item No.
3 BAV3L39F 329.73.503 0 BAVGL09F/16 329.73.510
3 BAVGL39F/16 329.85.043
6 BAVGL69F/16 329.73.516

> 7.5 mm (5/16") length for shared panel mounting

Height Model Item No.
0 BAVGL09F/20 329.73.520

9

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Flat head wood screws page 12.13
FC 9.40 www.hafele.com/us
