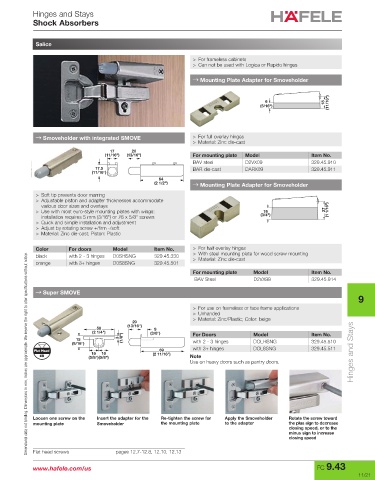

Hinges and Stays
Shock Absorbers

Salice

> For frameless cabinets
> Can not be used with Logica or Rapido hinges

→ Mounting Plate Adapter for Smoveholder

9 18 (11/16")
(5/16")

→ Smoveholder with integrated SMOVE > For full overlay hinges
> Material: Zinc die-cast
17 20
(11/16") (13/16") For mounting plate Model Item No.
BAV steel D2VX09 329.45.910
17.5 BAR die-cast DARX09 329.45.911
(11/16")
64
(2 1/2") → Mounting Plate Adapter for Smoveholder
> Soft tip prevents door marring
> Adjustable piston and adapter thicknesses accommodate
various door sizes and overlays
> Use with most euro-style mounting plates with wings: 19 27 (1 1/16")
installation requires 5 mm (3/16") or #8 x 5/8" screws (3/4")
> Quick and simple installation and adjustment
> Adjust by rotating screw +/firm -/soft
> Material: Zinc die-cast; Piston: Plastic

Color For doors Model Item No. > For half overlay hinges
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
black with 2 - 3 hinges D0SHSNG 329.45.330 > With steel mounting plate for wood screw mounting
> Material: Zinc die-cast
orange with 3+ hinges D0S8SNG 329.45.501
For mounting plate Model Item No.
BAV Steel D2VX99 329.45.914

→ Super SMOVE
9
> For use on frameless or face frame applications
> Unhanded
> Material: Zinc/Plastic; Color: beige
20
(13/16")
58 9
(2 1/4") (3/8") For Doors Model Item No.
15 3 (1/8")
(9/16") with 2 - 3 hinges DOLHSNG 329.45.510
Flat Head 69 with 3+ hinges DOL8SNG 329.45.511 Hinges and Stays
16
16
#8 (5/8") (5/8") (2 11/16") Note
Use on heavy doors such as pantry doors.

Loosen one screw on the Insert the adapter for the Re-tighten the screw for Apply the Smoveholder Rotate the screw toward
mounting plate Smoveholder the mounting plate to the adapter the plus sign to decrease
closing speed, or to the
minus sign to increase
closing speed

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 9.43
11/21
