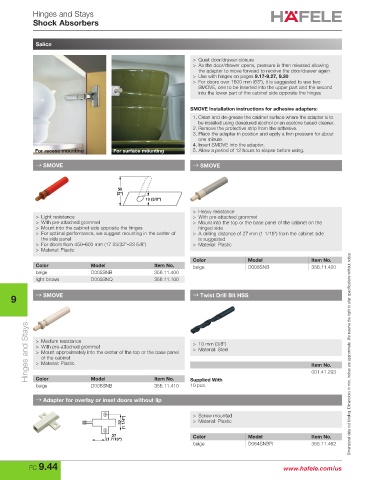

Hinges and Stays
Shock Absorbers

Salice

> Quiet door/drawer closure
> As the door/drawer opens, pressure is then released allowing
the adapter to move forward to receive the door/drawer again
> Use with hinges on pages 9.17-9.27, 9.30
> For doors over 1600 mm (63"), it is suggested to use two
SMOVE, one to be inserted into the upper part and the second
into the lower part of the cabinet side opposite the hinges

SMOVE Installation instructions for adhesive adapters:
1. Clean and de-grease the cabinet surface where the adapter is to
be installed using denatured alcohol or an acetone based cleaner.
2. Remove the protective strip from the adhesive.
3. Place the adapter in position and apply a firm pressure for about
one minute.
4. Insert SMOVE into the adapter.
For recess mounting For surface mounting 5. Allow a period of 12 hours to elapse before using.

→ SMOVE → SMOVE

50
(2")
10 (3/8")
> Heavy resistance
> Light resistance > With pre-attached grommet
> With pre-attached grommet > Mount into the top or the base panel of the cabinet on the
> Mount into the cabinet side opposite the hinges hinged side
> For optimal performance, we suggest mounting in the center of > A drilling distance of 27 mm (1 1/16") from the cabinet side
the side panel is suggested
> For doors from 450–600 mm (17 23/32"–23 5/8") > Material: Plastic
> Material: Plastic
Color Model Item No.
Color Model Item No. beige D008SNB 356.11.420
beige D005SNB 356.11.400
light brown D005SNQ 356.11.100

9 → SMOVE → Twist Drill Bit HSS

Hinges and Stays > Medium resistance > 10 mm (3/8") Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> With pre-attached grommet
> Material: Steel
> Mount approximately into the center of the top or the base panel
of the cabinet
> Material: Plastic

Color
10 pcs.
D006SNB
beige Model Item No. Supplied With 001.41.293
356.11.410
→ Adapter for overlay or inset doors without lip
> Screw mounted
32 (1 1/4") > Material: Plastic
37 Color Model Item No.
(1 7/16")
beige D064SNBR 356.11.462

FC 9.44 www.hafele.com/us
