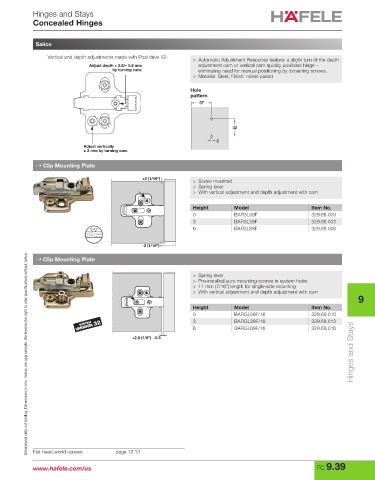

Page 857 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Concealed Hinges

Salice

Vertical and depth adjustments made with Pozi drive #2. > Automatic Adjustment Response feature: a slight turn of the depth
Adjust depth + 2.8/– 0.5 mm adjustment cam or vertical cam quickly positions hinge –
by turning cam. eliminating need for manual positioning by loosening screws.
> Material: Steel; Finish: nickel-plated

Hole
pattern
37

32
2
Adjust vertically
± 2 mm by turning cam.

→ Clip Mounting Plate

+2 (1/16") > Screw mounted
> Spring lever
> With vertical adjustment and depth adjustment with cam

Height Model Item No.
0 BAR3L09F 329.68.000
3 BAR3L39F 329.68.003
6 BAR3L69F 329.68.006

-2 (1/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Clip Mounting Plate

> Spring lever
> Pre-installed euro mounting screws in system holes
> 11 mm (7/16") length for single-side mounting
> With vertical adjustment and depth adjustment with cam
9
Height Model Item No.
0 BARGL09F/16 329.69.010
3 BARGL39F/16 329.69.013
Hinges and Stays
6 BARGL69F/16 329.69.016
+2.8 (1/8") -0.5

Flat head wood screws page 12.13
