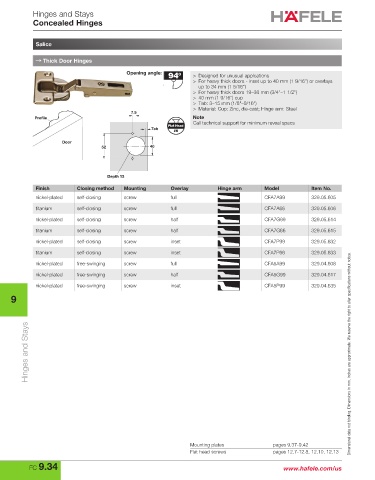

Hinges and Stays
Concealed Hinges

Salice

→ Thick Door Hinges
Opening angle: > Designed for unusual applcations
> For heavy thick doors - inset up to 40 mm (1 9/16") or overlays
up to 34 mm (1 5/16")
> For heavy thick doors 19–38 mm (3/4"–1 1/2")
> 40 mm (1 9/16") cup
> Tab: 3–15 mm (1/8"–9/16")
> Material: Cup: Zinc, die-cast; Hinge arm: Steel
7.5
Profile Note
Call technical support for minimum reveal specs
Flat Head
Tab
#6
Door
52 40

Depth 13
Finish Closing method Mounting Overlay Hinge arm Model Item No.
nickel-plated self-closing screw full CFA7A99 329.05.605
titanium self-closing screw full CFA7A66 329.05.606
nickel-plated self-closing screw half CFA7G99 329.05.614
titanium self-closing screw half CFA7G66 329.05.615

nickel-plated self-closing screw inset CFA7P99 329.05.632
titanium self-closing screw inset CFA7P66 329.05.633
nickel-plated free-swinging screw full CFA5A99 329.04.608
nickel-plated free-swinging screw half CFA5G99 329.04.617

nickel-plated free-swinging screw inset CFA5P99 329.04.635
9

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
