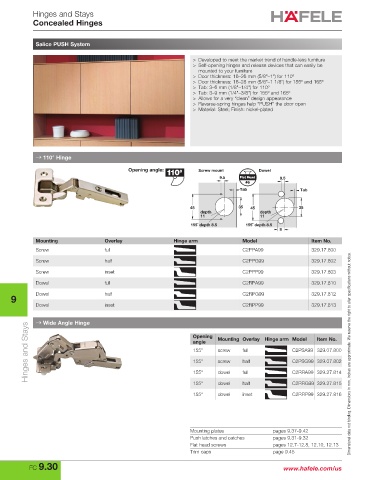

Hinges and Stays
Concealed Hinges

Salice PUSH System

> Developed to meet the market trend of handle-less furniture
> Self-opening hinges and release devices that can easily be
mounted to your furniture
> Door thickness: 16–26 mm (5/8"–1") for 110º
> Door thickness: 16–28 mm (5/8"–1 1/8") for 155º and 165º
> Tab: 3–6 mm (1/8"–1/4") for 110º
> Tab: 3–9 mm (1/4"–3/8") for 155º and 165º
> Allows for a very “clean” design appearance
> Reverse-spring hinges help “PUSH” the door open
> Material: Steel; Finish: nickel-plated

→ 110° Hinge

Opening angle: Screw mount Dowel
9.5 Flat Head 9.5
#6
Tab Tab

45 35 45 35
depth depth
11 11
155˚ depth 8.5 155˚ depth 8.5
8
Mounting Overlay Hinge arm Model Item No.
Screw full C2PPA99 329.17.800
Screw half C2PPG99 329.17.802

Screw inset C2PPP99 329.17.803
Dowel full C2RPA99 329.17.810

9 Dowel half C2RPG99 329.17.812
Dowel inset C2RPP99 329.17.813

→ Wide Angle Hinge
Hinges and Stays Opening Mounting Overlay Hinge arm Model Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

angle
screw
full
C2PSA99 329.07.800
155°
155°
screw
C2PSG99 329.07.802
half
C2RRA99 329.27.814
full
155°
dowel
155°
inset
155° dowel half C2RRG99 329.27.815
dowel
C2RRP99 329.27.816
Mounting plates pages 9.37-9.42
Push latches and catches pages 9.31-9.32
Flat head screws pages 12.7-12.8, 12.10, 12.13
Trim caps page 9.45
FC 9.30 www.hafele.com/us
