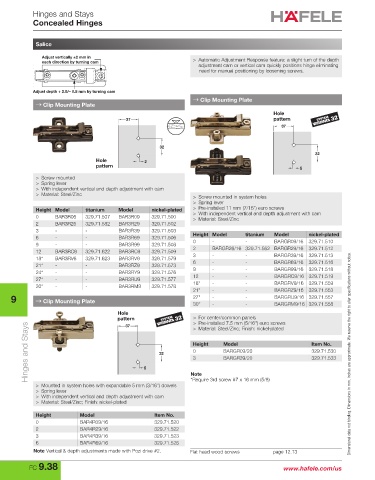

Page 856 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Concealed Hinges

Salice

Adjust vertically ±2 mm in > Automatic Adjustment Response feature: a slight turn of the depth
each direction by turning cam
adjustment cam or vertical cam quickly positions hinge eliminating
need for manual positioning by loosening screws.

Adjust depth + 2.8/– 0.5 mm by turning cam
→ Clip Mounting Plate
→ Clip Mounting Plate
Hole
37 pattern
37

32
32
Hole 2
pattern
5
> Screw mounted
> Spring lever
> With independent vertical and depth adjustment with cam
> Material: Steel/Zinc > Screw mounted in system holes
> Spring lever
Height Model titanium Model nickel-plated > Pre-installed 11 mm (7/16") euro screws
> With independent vertical and depth adjustment with cam
0 BAR3R06 329.71.507 BAR3R09 329.71.500 > Material: Steel/Zinc
2 BAR3R26 329.71.582 BAR3R29 329.71.502
3 - - BAR3R39 329.71.503 Height Model titanium Model nickel-plated
6 - - BAR3R69 329.71.506
9 - - BAR3R99 329.71.508 0 - - BARGR09/16 329.71.510
12 BAR3RC6 329.71.622 BAR3RC9 329.71.509 2 BARGR26/16 329.71.562 BARGR29/16 329.71.512
18* BAR3RV6 329.71.623 BAR3RV9 329.71.579 3 - - BARGR39/16 329.71.513
21* - - BAR3RZ9 329.71.573 6 - - BARGR69/16 329.71.516
24* - - BAR3RY9 329.71.576 9 - - BARGR99/16 329.71.518
27* - - BAR3RU9 329.71.577 12 - - BARGRC9/16 329.71.519
30* - - BAR3RM9 329.71.578 18* - - BARGRV9/16 329.71.559
21* - - BARGRZ9/16 329.71.553
9 → Clip Mounting Plate 27* - - BARGRU9/16 329.71.557
30* - - BARGRM9/16 329.71.558
Hole
pattern > For center/common panels
> Pre-installed 7.5 mm (5/16") euro screws
Hinges and Stays 5 32 Height Model Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
37
> Material: Steel/Zinc; Finish: nickel-plated

BARGR09/20
0
329.71.530
329.71.533
3
BARGR39/20
*Require 3rd screw #7 x 16 mm (5/8)
> Mounted in system holes with expandable 5 mm (3/16") dowels Note
> Spring lever
> With independent vertical and depth adjustment with cam
> Material: Steel/Zinc; Finish: nickel-plated

Height Model Item No.
0 BAR4R09/16 329.71.520
2 BAR4R29/16 329.71.522
3 BAR4R39/16 329.71.523
6 BAR4R69/16 329.71.526
Note Vertical & depth adjustments made with Pozi drive #2. Flat head wood screws page 12.13
