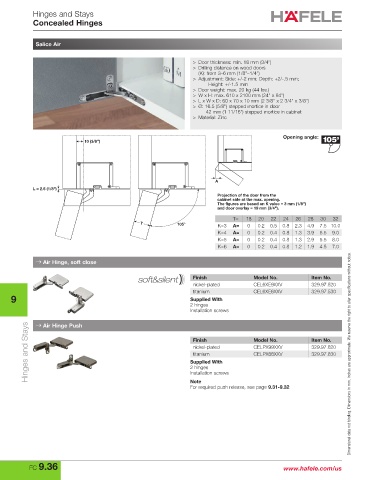

Hinges and Stays
Concealed Hinges

Salice Air

> Door thickness: min. 18 mm (3/4")
> Drilling distance on wood doors
(K): from 3–6 mm (1/8"–1/4")
> Adjustment: Side: +/-2 mm; Depth: +2/-.5 mm;
Height: +/-1.5 mm
> Door weight: max. 20 kg (44 lbs.)
> W x H: max. 610 x 2100 mm (24" x 84")
> L x W x D: 60 x 70 x 10 mm (2 3/8" x 2 3/4" x 3/8")
> Ø: 16.5 (5/8") stepped mortice in door
42 mm (1 11/16") stepped mortice in cabinet
> Material: Zinc

Opening angle:
10 (3/8")

A
L = 2.5 (1/8")
Projection of the door from the
cabinet side at the max. opening.
The figures are based on K value = 3 mm (1/8")
and door overlay = 19 mm (3/4").
T= 18 20 22 24 26 28 30 32
T 105° K=3 A= 0 0.2 0.5 0.8 2.3 4.9 7.5 10.0
K=4 A= 0 0.2 0.4 0.8 1.3 3.9 6.5 9.0
K=5 A= 0 0.2 0.4 0.8 1.3 2.9 5.5 8.0
K=6 A= 0 0.2 0.4 0.8 1.2 1.9 4.5 7.0

→ Air Hinge, soft close

Finish Model No. Item No.
nickel-plated CEL6XE9XXV 329.97.520
titanium CEL6XE6XXV 329.97.530
9 Supplied With
2 hinges
Installation screws

→ Air Hinge Push
Hinges and Stays Supplied With Model No. Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Finish
nickel-plated
329.97.820
CELPX99XXV
CELPX66XXV
titanium
329.97.830
2 hinges
Installation screws
Note
For required push release, see page 9.31-9.32
