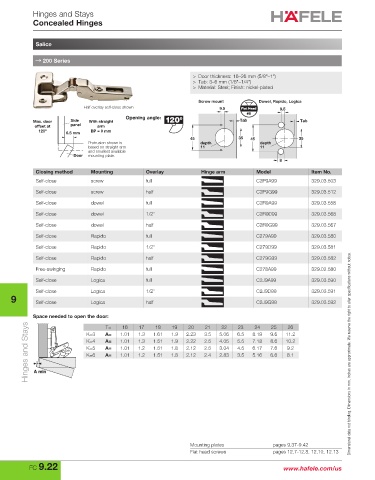

Hinges and Stays
Concealed Hinges

Salice

→ 200 Series

> Door thickness: 16–26 mm (5/8"–1")
> Tab: 3–6 mm (1/8"–1/4")
> Material: Steel; Finish: nickel-plated

Screw mount Dowel, Rapido, Logica
Half overlay self-close shown 9.5 Flat Head 9.5
#6
Opening angle:
Max. door Side With straight Tab Tab
offset at panel arm
120º 6.5 mm BP = 0 mm
45 35 45 35
Protrusion shown is depth depth
based on straight arm 11 11
and smallest available
Door mounting plate.
8
Closing method Mounting Overlay Hinge arm Model Item No.
Self-close screw full C2P9A99 329.03.503
Self-close screw half C2P9G99 329.03.512

Self-close dowel full C2R9A99 329.03.558
Self-close dowel 1/2" C2R9D99 329.03.568
Self-close dowel half C2R9G99 329.03.567

Self-close Rapido full C279A99 329.03.580
Self-close Rapido 1/2" C279D99 329.03.581
Self-close Rapido half C279G99 329.03.582
Free-swinging Rapido full C278A99 329.02.580
Self-close Logica full C2J9A99 329.03.590

Self-close Logica 1/2" C2J9D99 329.03.591
9 Self-close Logica half C2J9G99 329.03.592

Space needed to open the door: 1.01 1.3 1.61 1.9 2.23 3.5 5.06 6.5 8.19 9.6 11.2
Hinges and Stays K=4 A= 1.01 1.3 1.51 1.9 2.22 2.5 4.05 5.5 7.18 8.6 10.2 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
19
18
20
24
25
26
21
22
23
T=
17
16
K=3
A=
2.5
4.5
1.01
3.04
K=5
7.6
6.17
A=
9.2
1.2
1.51
1.8
2.12
6.6
5.16
8.1
1.51
K=6
1.8
2.12
2.83
A=
1.01
2.4
1.2
3.5
Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 9.22 www.hafele.com/us
