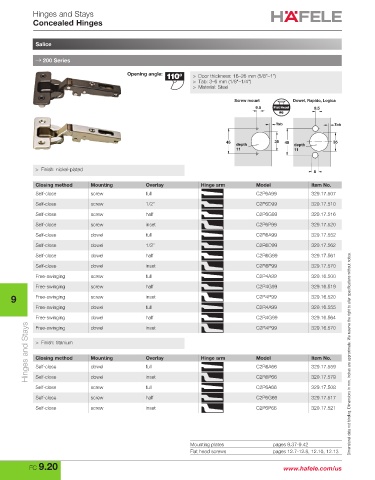

Hinges and Stays
Concealed Hinges

Salice

→ 200 Series
Opening angle: > Door thickness: 16–26 mm (5/8"–1")
> Tab: 3–6 mm (1/8"–1/4")
> Material: Steel

Screw mount Dowel, Rapido, Logica
9.5 Flat Head 9.5
#6

Tab Tab

45 35 45 35
depth depth
11 11

> Finish: nickel-plated 8

Closing method Mounting Overlay Hinge arm Model Item No.
Self-close screw full C2P6A99 329.17.507
Self-close screw 1/2" C2P6D99 329.17.510
Self-close screw half C2P6G99 329.17.516
Self-close screw inset C2P6P99 329.17.520
Self-close dowel full C2R6A99 329.17.552
Self-close dowel 1/2" C2R6D99 329.17.562

Self-close dowel half C2R6G99 329.17.561
Self-close dowel inset C2R6P99 329.17.570
Free-swinging screw full C2P4A99 329.16.500
Free-swinging screw half C2P4G99 329.16.519
9 Free-swinging screw inset C2P4P99 329.16.520
Free-swinging dowel full C2R4A99 329.16.555
Free-swinging dowel half C2R4G99 329.16.564
Hinges and Stays > Finish: titanium Mounting Overlay Hinge arm Model Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
C2R4P99
inset
dowel
329.16.570
Free-swinging
Closing method
329.17.559
Self-close
C2R6A66
dowel
full
Self-close
329.17.508
C2P6A66
screw
Self-close dowel inset C2R6P66 329.17.579
full
Self-close screw half C2P6G66 329.17.517
Self-close screw inset C2P6P66 329.17.521

Mounting plates pages 9.37-9.42
Flat head screws pages 12.7-12.8, 12.10, 12.13
