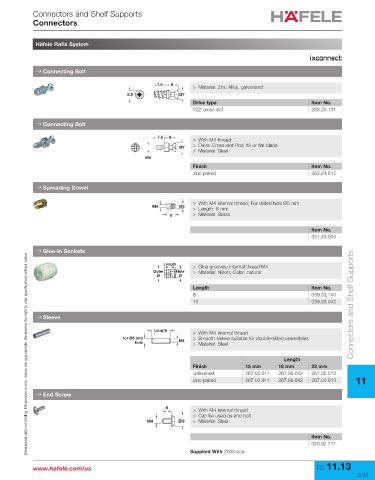

P. 1177
Connectors and Shelf Supports
Connectors
Häfele Rafix System
→ Connecting Bolt
7.5 9
> Material: Zinc Alloy, galvanized
6.5 Ø7
Drive type Item No.
PZ2 cross slot 263.20.131
→ Connecting Bolt
7.5 9
> With M4 thread
Ø7 > Drive: Cross-slot Pozi #2 or flat blade
> Material: Steel
M4
Finish Item No.
zinc-plated 263.21.817
→ Spreading Dowel
> With M4 internal thread; For drilled hole Ø5 mm
M4 Ø5 > Length: 8 mm
8 > Material: Brass
Item No.
051.45.004
→ Glue-in Sockets
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Length
> Glue grooves; Internal thread M4
Outer Hole > Material: Nylon; Color: natural
Ø Ø
Length Item No.
8 039.33.140
10 039.33.042 Connectors and Shelf Supports
→ Sleeve
Length
> With M4 internal thread
for Ø5 mm > Smooth sleeve suitable for double-sided assemblies
hole M4 > Material: Steel
Length
Finish 15 mm 18 mm 22 mm
unfinished 267.00.011 267.00.012 267.00.013
zinc-plated 267.00.911 267.00.912 267.00.913 11
→ End Screw
8 > With M4 internal thread
> Can be used as end bolt
M4 Ø9 > Material: Steel
Item No.
020.92.711
Supplied With 2000 pcs.
www.hafele.com/us FC 11.13
2/22
