Connectors and Shelf Supports
Connectors

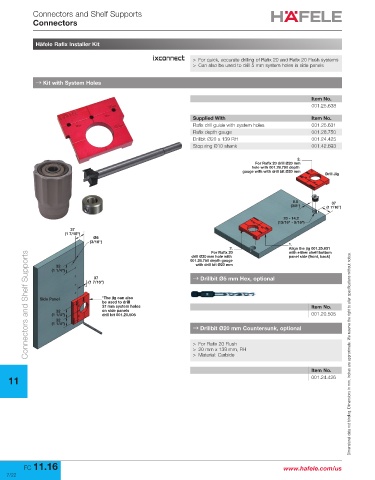

Häfele Rafix Installer Kit

> For quick, accurate drilling of Rafix 20 and Rafix 20 Flush systems
> Can also be used to drill 5 mm system holes in side panels

→ Kit with System Holes

Item No.
001.25.638

Supplied With Item No.
Rafix drill guide with system holes 001.25.631
Rafix depth gauge 001.28.750
Drillbit Ø20 x 139 RH 001.24.425
Stop ring Ø10 shank 001.42.693

2.
For Rafix 20 drill Ø20 mm
hole with 001.28.750 depth
gauge with with drill bit Ø20 mm
Drill Jig

9.5 37
(3/8") (1 7/16")
20 - 14.2
(13/16" - 9/16")
37
(1 7/16")
Ø5
(3/16") 1.
2. Align the jig 001.25.631
Connectors and Shelf Supports
For Rafix 20 with either shelf bottom
drill Ø20 mm hole with panel side (front, back)
001.28.750 depth gauge
32 with drill bit Ø20 mm
(1 1/4")
37 → Drillbit Ø5 mm Hex, optional
(1 7/16")
Side Panel *The jig can also
be used to drill
37 mm system holes Item No.
32 on side panels
(1 1/4") drill bit 001.20.505 001.20.505
32
(1 1/4")
→ Drillbit Ø20 mm Countersunk, optional

> For Rafix 20 Flush
> 20 mm x 139 mm, RH
> Material: Carbide Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Item No.
11 001.24.426

FC 11.16 www.hafele.com/us
7/22
