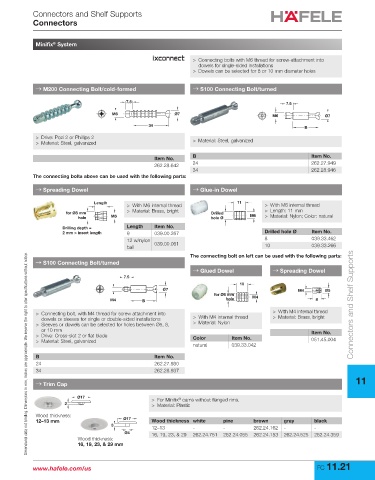

Connectors and Shelf Supports
Connectors

Minifix System
®

> Connecting bolts with M6 thread for screw-attachment into
dowels for single-sided installations
> Dowels can be selected for 8 or 10 mm diameter holes

→ M200 Connecting Bolt/cold-formed → S100 Connecting Bolt/turned
7.5 7.5

M6 Ø7 M6 Ø7
34 B
> Drive: Pozi 2 or Phillips 2
> Material: Steel, galvanized > Material: Steel, galvanized

Item No. B Item No.
262.28.642 24 262.27.949
34 262.28.946
The connecting bolts above can be used with the following parts:

→ Spreading Dowel → Glue-in Dowel

Length 11
> With M6 internal thread > With M6 internal thread
for Ø8 mm > Material: Brass, bright Drilled > Length: 11 mm
hole M6 hole Ø M6 > Material: Nylon; Color: natural
Drilling depth = Length Item No.
2 mm > insert length 9 039.00.267 Drilled hole Ø Item No.
12 w/nylon 8 039.33.462
ball 039.00.061 10 039.33.266
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
The connecting bolt on left can be used with the following parts:
→ S100 Connecting Bolt/turned
→ Glued Dowel → Spreading Dowel
7.5
10
Ø7 M4 Ø5
for Ø8 mm
M4 B hole M4 8 Connectors and Shelf Supports
> Connecting bolt, with M4 thread for screw attachment into > With M4 internal thread
dowels or sleeves for single or double-sided installations > With M4 internal thread > Material: Brass, bright
> Sleeves or dowels can be selected for holes between Ø5, 8, > Material: Nylon
or 10 mm Item No.
> Drive: Cross-slot 2 or flat blade Color Item No.
> Material: Steel, galvanized 051.45.004
natural 039.33.042
B Item No.
24 262.27.930
34 262.28.937
11
→ Trim Cap
Ø17 > For Minifix cams without flanged rims.
®
2 > Material: Plastic
Wood thickness:
12–13 mm Ø17 Wood thickness white pine brown gray black
3
12–13 - - 262.24.162 - -
Ø4 16, 19, 23, & 29 262.24.751 262.24.055 262.24.153 262.24.525 262.24.359
Wood thickness:
16, 19, 23, & 29 mm

www.hafele.com/us FC 11.21
