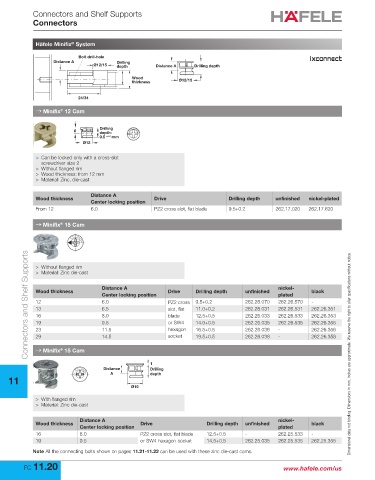

Connectors and Shelf Supports
Connectors

Häfele Minifix System
®
Bolt drill-hole
Distance A Drilling
Ø12/15 depth Distance A Drilling depth
Wood
thickness Ø12/15

24/34
®
→ Minifix 12 Cam

Drilling
6 depth:
9.5 +0.2 mm
Ø12

> Can be locked only with a cross-slot
screwdriver size 2
> Without flanged rim
> Wood thickness: from 12 mm
> Material: Zinc, die-cast

Distance A
Wood thickness Drive Drilling depth unfinished nickel-plated
Center locking position
From 12 6.0 PZ2 cross slot, flat blade 9.5+0.2 262.17.020 262.17.620

→ Minifix 15 Cam
®

Connectors and Shelf Supports

> Without flanged rim
> Material: Zinc die-cast

Distance A nickel-
Wood thickness Drive Drilling depth unfinished black
Center locking position plated
12 6.0 PZ2 cross 9.5+0.2 262.26.070 262.26.570 -
13 6.5 slot, flat 11.0+0.2 262.26.031 262.26.531 262.26.351
16 8.0 blade 12.5+0.5 262.26.033 262.26.533 262.26.353
19 9.5 or SW4 14.0+0.5 262.26.035 262.26.535 262.26.355
23 11.5 hexagon 16.5+0.5 262.26.036 - 262.26.356
29 14.5 socket 19.5+0.5 262.26.038 - 262.26.358

→ Minifix 15 Cam Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
®
1
Distance Drilling
A depth
11
Ø15

> With flanged rim
> Material: Zinc die-cast

Distance A nickel-
Wood thickness Drive Drilling depth unfinished black
Center locking position plated
16 8.0 PZ2 cross slot, flat blade 12.5+0.5 - 262.25.533 -
19 9.5 or SW4 hexagon socket 14.5+0.5 262.25.035 262.25.535 262.25.355
Note All the connecting bolts shown on pages 11.21-11.22 can be used with these zinc die-cast cams.
