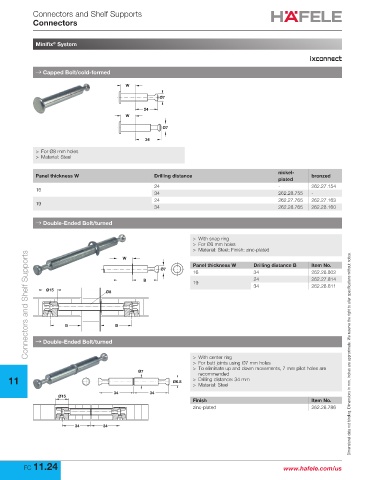

P. 1188
Connectors and Shelf Supports
Connectors
Minifix System
®
→ Capped Bolt/cold-formed
W
Ø7
24
W
Ø7
34
> For Ø8 mm holes
> Material: Steel
nickel-
Panel thickness W Drilling distance bronzed
plated
24 - 262.27.154
16
34 262.28.755 -
24 262.27.765 262.27.163
19
34 262.28.765 262.28.160
→ Double-Ended Bolt/turned
> With snap ring
> For Ø8 mm holes
> Material: Steel; Finish: zinc-plated
Connectors and Shelf Supports
W
Panel thickness W Drilling distance B Item No.
Ø7
16 34 262.28.802
B 24 262.27.814
19
34 262.28.811
Ø15 Ø8
B B
→ Double-Ended Bolt/turned
> With center ring Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> For butt joints using Ø7 mm holes
> To eliminate up and down movements, 7 mm pilot holes are
Ø7 recommended
11 Ø6.8 > Drilling distance: 34 mm
> Material: Steel
34 34
Ø15
Finish Item No.
zinc-plated 262.28.786
34 34
FC 11.24 www.hafele.com/us
