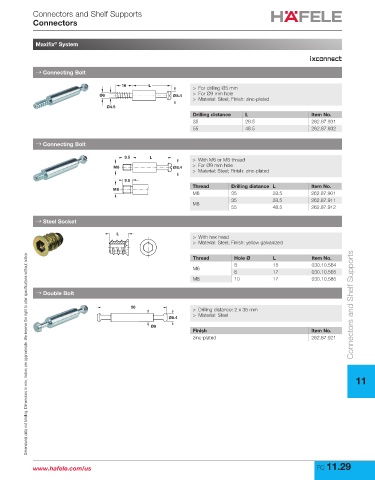

P. 1193
Connectors and Shelf Supports
Connectors
Maxifix System
®
→ Connecting Bolt
16 L
> For drilling Ø5 mm
Ø6 Ø8.4 > For Ø9 mm hole
> Material: Steel; Finish: zinc-plated
Ø4.5
Drilling distance L Item No.
35 28.5 262.87.931
55 48.5 262.87.932
→ Connecting Bolt
9.5 L
> With M6 or M8 thread
> For Ø9 mm hole
M6 Ø8.4
> Material: Steel; Finish: zinc-plated
9.5
Thread Drilling distance L Item No.
M8
M6 35 28.5 262.87.901
35 28.5 262.87.911
M8
55 48.5 262.87.912
→ Steel Socket
> With hex head
> Material: Steel; Finish: yellow galvanized
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Thread Hole Ø L Item No.
8 15 030.10.564
M6
8 17 030.10.565
M8 10 17 030.10.585
→ Double Bolt
56 Connectors and Shelf Supports
> Drilling distance: 2 x 35 mm
> Material: Steel
Ø8.4
Ø9
Finish Item No.
zinc-plated 262.87.921
11
www.hafele.com/us FC 11.29
